HSR312L, HSR312LS, HSR312SR2

Table of contents:
Info of HSR312L
Info of HSR312LS
Info of HSR312SR2

HSR312L, HSR312LS, HSR312SR2 Selling Leads, Datasheet

MFG:Fairchild Optoelectronics Group Category:Relays Package Cooled:DIP-6 NEW AND ORIGINAL D/C:08+/09+

HSR312L, HSR312LS, HSR312SR2 Datasheet download

Five Points

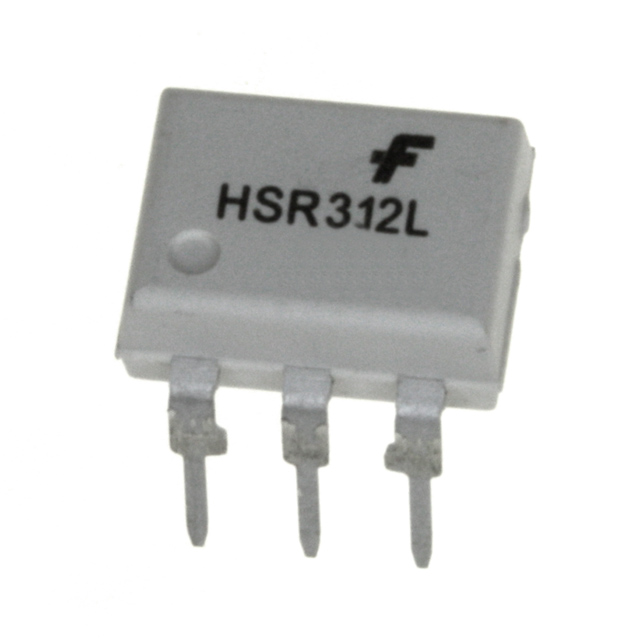

Part Number: HSR312L

Category: Relays

MFG: Fairchild Optoelectronics Group

Package Cooled: DIP-6 NEW AND ORIGINAL

D/C: 08+/09+

Description: OPTOCOUPLER SSR 250V 6-SMD

Price Break

1
10
100
250
500
1000
5000

Unit Price

3.25000
2.87900
1.85760
1.67184
1.48608
1.27710
1.16100

Extended Price

3.25
28.79
185.76
417.96
743.04
1277.10
5805.00

(All prices are in USD) Prices for reference only

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

HSR312L Parameters

Technical/Catalog Information	HSR312L
Vendor	Fairchild Optoelectronics Group
Category	Relays
Mounting Type	Through Hole
Termination Style	PC Pin
Package / Case	6-DIP
Circuit	SPST-NO (1 Form A)
Load Current	170mA
Voltage - Input	1.6VDC
Voltage - Load	0 ~ 250 V
Output Type	AC, DC
On-State Resistance	15 Ohm
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	HSR312L HSR312L

HSR312L Maximum Ratings

Product	Product status	Eco Status	Pricing*	Package type	Leads	Packing method	Package Drawing
HSR312L	Full Production	RoHS Compliant	$1.57	DIP-W	6	BULK	TBD
HSR312LS	Full Production	RoHS Compliant	$1.19	SMDIP-W	6	BULK	TBD
HSR312LSR2	Full Production	RoHS Compliant	$1.57	SMDIP-W	6	TAPE REEL	TBD

* Fairchild 1,000 piece Budgetary Pricing

** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples

HSR312L Features

• 4,000 VRMS Isolation
• Wide operating voltage range
250 V (HSR312, HSR312L)
400 V (HSR412, HSR412L)
• Solid-State Reliability
• Bounce-Free Operation
• 4000 V ESD Rating (HBM)
• UL, CSA and BABT approval pending

HSR312L Typical Application

• On/Off Hook Switch
• Replacement for Mechanical Relays
• Dial Out Relay
• Ring Injection Relay
• General Switching
• Ground Start

HSR312LS Parameters

Technical/Catalog Information	HSR312LS
Vendor	Fairchild Semiconductor
Category	Relays
Mounting Type	Surface Mount
Termination Style	Gull Wing
Package / Case	6-SMD
Circuit	SPST-NO (1 Form A)
Load Current	170mA
Voltage - Input	1.6VDC
Voltage - Load	0 ~ 250V
Output Type	AC, DC
On-State Resistance	15 Ohm
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	HSR312LS HSR312LS

HSR312SR2 Parameters

Technical/Catalog Information	HSR312SR2
Vendor	Fairchild Optoelectronics Group
Category	Relays
Mounting Type	Surface Mount
Termination Style	Gull Wing
Package / Case	6-SMD
Circuit	SPST-NO (1 Form A)
Load Current	190mA
Voltage - Input	1.6VDC
Voltage - Load	0 ~ 250 V
Output Type	AC, DC
On-State Resistance	10 Ohm
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	HSR312SR2 HSR312SR2
