HSR277TRC, HSR277TRF, HSR312

Table of contents:
Info of HSR277TRC
Info of HSR277TRF
Info of HSR312

HSR277TRC, HSR277TRF, HSR312 Selling Leads, Datasheet

MFG:Fairchild Optoelectronics Group Category:Relays Package Cooled:Sod-123 D/C:09+

HSR277TRC, HSR277TRF, HSR312 Datasheet download

Five Points

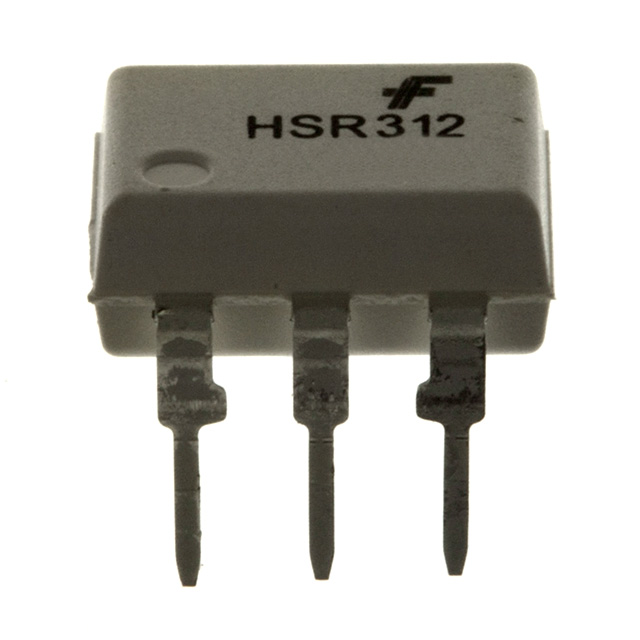

Part Number: HSR312

Category: Relays

MFG: Fairchild Optoelectronics Group

Package Cooled: Sod-123

D/C: 09+

Description: OPTOCOUPLER SSR 250V 6DIP

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

HSR312 Parameters

Technical/Catalog Information	HSR312
Vendor	Fairchild Optoelectronics Group
Category	Relays
Mounting Type	Through Hole
Termination Style	PC Pin
Package / Case	6-DIP
Circuit	SPST-NO (1 Form A)
Load Current	190mA
Voltage - Input	1.6VDC
Voltage - Load	0 ~ 250 V
Output Type	AC, DC
On-State Resistance	10 Ohm
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	HSR312 HSR312

HSR312 Maximum Ratings

Product	Product status	Eco Status	Pricing*	Package type	Leads	Packing method	Package Drawing
HSR312	Full Production	RoHS Compliant	$1.57	DIP-W	6	BULK	TBD
HSR312S	Full Production	RoHS Compliant	$1.57	SMDIP-W	6	BULK	TBD
HSR312SR2	Full Production	RoHS Compliant	$1.57	SMDIP-W	6	TAPE REEL	TBD

* Fairchild 1,000 piece Budgetary Pricing

** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples

HSR312 Features

• 4,000 VRMS Isolation
• Wide operating voltage range
250 V (HSR312, HSR312L)
400 V (HSR412, HSR412L)
• Solid-State Reliability
• Bounce-Free Operation
• 4000 V ESD Rating (HBM)
• UL, CSA and BABT approval pending

HSR312 Typical Application

• On/Off Hook Switch
• Replacement for Mechanical Relays
• Dial Out Relay
• Ring Injection Relay
• General Switching
• Ground Start
