HS1101LF, HS111-0, HS1124

HS1101LF, HS111-0, HS1124 Selling Leads, Datasheet

MFG:Measurement Specialties Inc/Humirel  Category:Sensors, Transducers  Package Cooled:2008+ROHS  D/C:1400

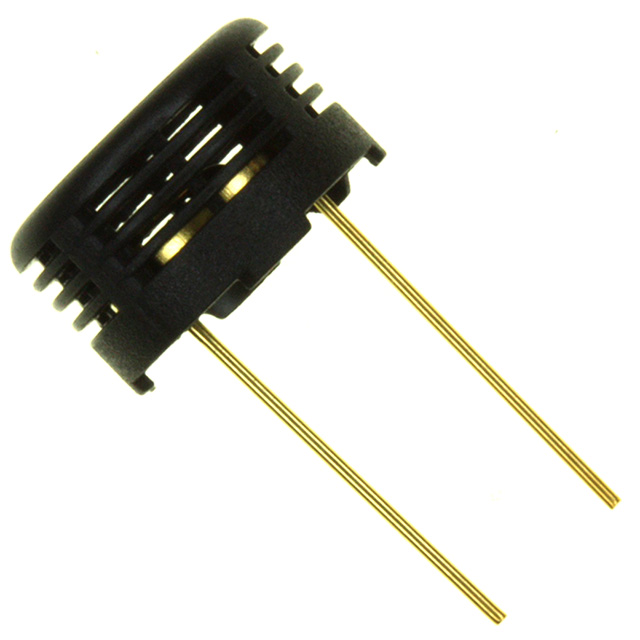

HS1101LF Picture

HS1101LF, HS111-0, HS1124 Datasheet download

Five Points

Part Number: HS1101LF

Category: Sensors, Transducers

MFG: Measurement Specialties Inc/Humirel

Package Cooled: 2008+ROHS

D/C: 1400

Description: SENSOR RH CAPACITIVE SIDE OPEN






Urgent Purchase
Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.


Top Sellers:

TOP

HS1101LF Suppliers

More HS1101LF Suppliers

Select All

  • HS1101LF

  • Vendor: humidity Pack: CAN D/C: 07+& Qty: 597 Note: stock and original  Adddate: 2024-11-23
  • Inquire Now
  • TopChip Electronic ltd.   China
    Contact: Ms.linda   MSN:linda2007@hotmail.com
    Tel: 86-755-82567779
    Fax: 86-755-83741117
    (356)
  • HS1101

  • Vendor: humidity Pack: DIP D/C: 07+& Qty: 8000 Note: "SZStock  Adddate: 2024-11-23
  • Inquire Now
  • JiaYiElectronic   China
    Contact: Ms.bady   MSN:chen-zi-jiao@hotmail.com
    Tel: 0086-0755-82987213
    Fax: 0086-0755-83035984
    (23)
  • HS1101LF

  • Vendor: humidity Pack: CAN D/C: 07+& Qty: 597 Note: stock and original  Adddate: 2024-11-23
  • Inquire Now
  • TopChip Electronic ltd.   China
    Contact: Ms.linda   MSN:linda2007@hotmail.com
    Tel: 86-755-82567779
    Fax: 86-755-83741117
    (356)
  • HS12510

  • Qty: 8460 Note: New,unused in stock and at lower price in perfect quality!!!  Adddate: 2024-11-23
  • Inquire Now
  • Beijing huadong shiji teconolgy Co.,Lt   China
    Contact: Mr.zimingjiang   MSN:hddz-006@hotmail.com
    Tel: 86-010-62575888 805
    Fax: 86-010-62575899
    (5)

About HS100

PDF/DataSheet Download

Datasheet: HS100

File Size: 367045 KB

Manufacturer: NEL

Download : Click here to Download

Related PDF Download

Related Part Number

HS111-0 Suppliers

More HS111-0 Suppliers

Select All

  • HS1101

  • Vendor: humidity Pack: DIP D/C: 07+& Qty: 8000 Note: "SZStock  Adddate: 2024-11-23
  • Inquire Now
  • JiaYiElectronic   China
    Contact: Ms.bady   MSN:chen-zi-jiao@hotmail.com
    Tel: 0086-0755-82987213
    Fax: 0086-0755-83035984
    (23)
  • HS1101LF

  • Vendor: humidity Pack: CAN D/C: 07+& Qty: 597 Note: stock and original  Adddate: 2024-11-23
  • Inquire Now
  • TopChip Electronic ltd.   China
    Contact: Ms.linda   MSN:linda2007@hotmail.com
    Tel: 86-755-82567779
    Fax: 86-755-83741117
    (356)
  • HS12510

  • Qty: 8460 Note: New,unused in stock and at lower price in perfect quality!!!  Adddate: 2024-11-23
  • Inquire Now
  • Beijing huadong shiji teconolgy Co.,Lt   China
    Contact: Mr.zimingjiang   MSN:hddz-006@hotmail.com
    Tel: 86-010-62575888 805
    Fax: 86-010-62575899
    (5)

About HS100

PDF/DataSheet Download

Datasheet: HS100

File Size: 367045 KB

Manufacturer: NEL

Download : Click here to Download

Related PDF Download

Related Part Number

HS1124 Suppliers

More HS1124 Suppliers

Select All

  • HS1101

  • Vendor: humidity Pack: DIP D/C: 07+& Qty: 8000 Note: "SZStock  Adddate: 2024-11-23
  • Inquire Now
  • JiaYiElectronic   China
    Contact: Ms.bady   MSN:chen-zi-jiao@hotmail.com
    Tel: 0086-0755-82987213
    Fax: 0086-0755-83035984
    (23)
  • HS1101LF

  • Vendor: humidity Pack: CAN D/C: 07+& Qty: 597 Note: stock and original  Adddate: 2024-11-23
  • Inquire Now
  • TopChip Electronic ltd.   China
    Contact: Ms.linda   MSN:linda2007@hotmail.com
    Tel: 86-755-82567779
    Fax: 86-755-83741117
    (356)
  • HS12510

  • Qty: 8460 Note: New,unused in stock and at lower price in perfect quality!!!  Adddate: 2024-11-23
  • Inquire Now
  • Beijing huadong shiji teconolgy Co.,Lt   China
    Contact: Mr.zimingjiang   MSN:hddz-006@hotmail.com
    Tel: 86-010-62575888 805
    Fax: 86-010-62575899
    (5)
  • HS12515

  • Qty: 8460 Note: New,unused in stock and at lower price in perfect quality!!!  Adddate: 2024-11-23
  • Inquire Now
  • Beijing huadong shiji teconolgy Co.,Lt   China
    Contact: Mr.zimingjiang   MSN:hddz-006@hotmail.com
    Tel: 86-010-62575888 805
    Fax: 86-010-62575899
    (5)

About HS100

PDF/DataSheet Download

Datasheet: HS100

File Size: 367045 KB

Manufacturer: NEL

Download : Click here to Download

Related PDF Download

Related Part Number

HS1101LF Parameters

Technical/Catalog InformationHS1101LF
VendorMeasurement Specialties Inc/Humirel
CategorySensors, Transducers
Sensor TypeRH Side Opening
Voltage - Supply5V
Capacitance180pF @ 55% RH
Response Time5s (33 ~ 76% RH, static @ 63%)
Output-6.5 ~ -3 VDC
Operating Temperature-60°C ~ 140°C
Sensitivity0.31pF/%RH
Accuracy±2% @ 10 ~ 90% RH @25°C
Humidity Range1 ~ 99% RH
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names HS1101LF
HS1101LF

HS1101LF General Description

Based on a unique capacitive cell, these relative humidity sensors are designed for high volume, cost sensitive applications such as office automation, automotive cabin air control,
home appliances, and industrial process control systems. They are also useful in all applications where humidity compensation is needed.

HS1101LF Maximum Ratings

Ratings

Symbol

Value

Unit

Operating Temperature

Ta

-60 to 140

Storage Temperature

Tstg

-60 to 140

Supply Voltage (Peak)

Vs

10

Vac

Humidity Operating Range

RH

0 to 100

% RH

HS1101LF Features

· Lead Free Components
· Full Interchangeability with no calibration required in standard conditions
· Instantaneous desaturation after long periods in saturation phase
· Compatible with automatized assembly processes, including Pb free wave soldering and reflow processes (1)
· High Reliability and Long Term Stability
· Patented Solid Polymer Structure
· Suitable for linear voltage or frequency output circuitry
· Fast response time and very low temperature coefficient
· Part may be washed with distilled water
· Individual marking for compliance to stringent traceability requirements

(1) Soldering temperature profiels available upon request/contact us at application@humirel.com
