HMC583LP5E, HMC5843, HMC584LP5

Table of contents:
Info of HMC583LP5E
Info of HMC5843
Info of HMC584LP5

HMC583LP5E, HMC5843, HMC584LP5 Selling Leads, Datasheet

MFG:Honeywell Microelectronics & Precision Sensors Category:Sensors, Transducers Package Cooled:QFN D/C:09+

HMC583LP5E, HMC5843, HMC584LP5 Datasheet download

Five Points

Part Number: HMC5843

Category: Sensors, Transducers

MFG: Honeywell Microelectronics & Precision Sensors

Package Cooled: QFN

D/C: 09+

Description: SENSOR MAGNETIC 3 AXIS 20-LCC

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

HMC583LP5E General Description

The HMC583LP5 & HMC583LP5E are GaAs InGaP Heterojunction Bipolar Transistor (HBT) MMIC VCOs. The HMC583LP5 & HMC583LP5E integrate resonators, negative resistance devices, varactor diodes and feature half frequency and divide-by-4 outputs. The VCOs phase noise performance is excellent ovetemperature, shock, and process due to the scillators
monolithic structure. Power output is +11 dBm typical from a +5V supply voltage. The prescaler and RF/2 tions disabled to conserve current if not required. The voltage controlled oscillator is packaged in a leadless QFN 5x5 mm surface ount package, and requires no external matching components.

HMC583LP5E Maximum Ratings

Vcc(Dig), Vcc(Amp), Vcc(RF)	+5.5 Vdc
Vtune	0 to +15V
Junction Temperature	135
Continuous Pdiss (T=85 (derate 43.5 mW/ above 85	2.17 W
Thermal Resistance (junction to ground paddle)	23 /W
Storage Temperature	-65 to +150
Operating Temperature	-40 to +85
ESD Sensitivity (HBM)	Class 1A

HMC583LP5E Features

·Dual Output:
Fo = 11.5 - 12.8 GHz
Fo/2 = 5.75 - 6.4 GHz
·Pout: +11 dBm
·Phase Noise: -110 dBc/Hz @100 kHz Typ.
·No External Resonator Needed
^·QFN Leadless SMT Package, 25 mm²

HMC583LP5E Typical Application

Low noise MMIC VCO w/Half Frequency, Divide-by-4
Outputs for:
·Point to Point/Multipoint Radio
·Test Equipment & Industrial Controls
·SATCOM
·Military End-Use

HMC5843 Parameters

Technical/Catalog Information	HMC5843
Vendor	Honeywell Microelectronics & Precision Sensors
Category	Sensors, Transducers
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	HMC5843 HMC5843 342 1071 ND 3421071ND 342-1071

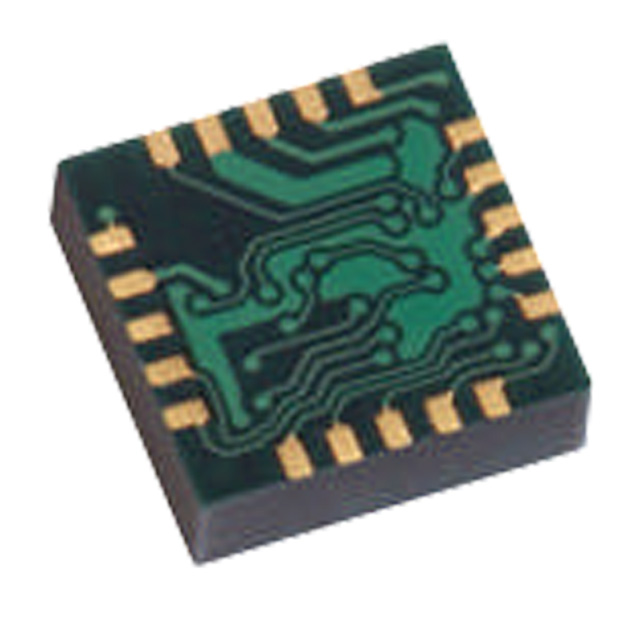

HMC5843 General Description

The HMC5843 is a a surface mount multi-chip module designed for low field magnetic sensing with a digital interface. It can be used for applications such as low cost compassing and magnetometry. It is available in Tape and Reel package.

There are some features as follows. (1) 3-axis magnetoresistive sensors and ASIC in a single package; (2) low voltage operations; (3) lead free package construction; (4) wide magnetic field range; (5) complies with current environmental standards; (6) high volume OEM assembly; (7) compatible for battery powered applications; (8) small size for highly integrated products.

What comes next is about its specifications at 25 . (1): supplt voltage is from 2.5 V to 3.3 V at AVDD referenced to AGND,and is from 1.6 V to 2.0 V at DVDD referenced to DGND; (2): the typical current draw is 0.8 mA when at measurement mode; (3): the maximum exposed field is 10000 gauss and the maximum measurement period is 10 msec; (4): the typical bandwidth is 10 KHz for -3 dB point; (5): the typical turn-on time is 200 s; (6): operating temperature is from -30 to 85 and the storage temperature is from -40 to 125 .

HMC584LP5 General Description

The HMC584LP5 & HMC584LP5E are GaAs InGaP Heterojunction Bipolar Transistor (HBT) MMIC VCOs.The HMC584LP5 & HMC584LP5E integrate resonators, negative resistance devices, varactor diodes and feature half frequency and divide-by-4 outputs. The VCO's phase noise performance is excellent over temperature, shock, and process due to the oscillator's monolithic structure. Power output is +10 dBm typical from a +5V supply voltage. The prescaler and RF/2 functions can be disabled to conserve current if not required. The voltage controlled oscillator is packaged in a leadless QFN 5x5 mm surface mount package, and requires no external matching components.

The above info is from (www.seekic.com)

HMC584LP5 Maximum Ratings

Vcc(Dig), Vcc(Amp), Vcc(RF) ...........+5.5 Vdc
Vtune ..........................................0 to +15V
Junction Temperature....................... 135
Continuous Pdiss (T=85 )
(derate 43.5 mW/C above 85 .......2.17 W
Thermal Resistance
(junction to ground paddle).............23 /W
Storage Temperature........... -65 to +150
Operating Temperature ..........-40 to +85
ESD Sensitivity (HBM) Class ....................1A

Edited by (www.seekic.com) ,the biggest IC PDF and datasheet download site.

HMC584LP5 Features

Dual Output: Fo = 12.5 - 13.9 GHz Fo/2 = 6.25 - 6.95 GHz
Pout: +10 dBm
Phase Noise: -110 dBc/Hz @100 kHz Typ.
No External Resonator Needed
QFN Leadless SMT Package, 25 mm²

The above info is from (www.seekic.com)

HMC584LP5 Typical Application

Low noise MMIC VCO w/Half Frequency, Divide-by-4 Outputs for:
• Point to Point/Multipoint Radio
• Test Equipment & Industrial Controls
• SATCOM
• Military End-Use

HMC584LP5 Connection Diagram
