MFG:TDK Corporation Category:Transformers Package Cooled:06+ D/C:09+
HHM1526, HHM1541E1, HHM1544 Datasheet download
Category: Transformers
MFG: TDK Corporation
Package Cooled: 06+
D/C: 09+
Description: XFRMR BALUN RF 2.4GHZ BLUETOOTH
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: HHM1520
File Size: 208035 KB
Manufacturer: TDK
Download : Click here to Download
PDF/DataSheet Download
Datasheet: HHM1520
File Size: 208035 KB
Manufacturer: TDK
Download : Click here to Download
PDF/DataSheet Download
Datasheet: HHM1520
File Size: 208035 KB
Manufacturer: TDK
Download : Click here to Download

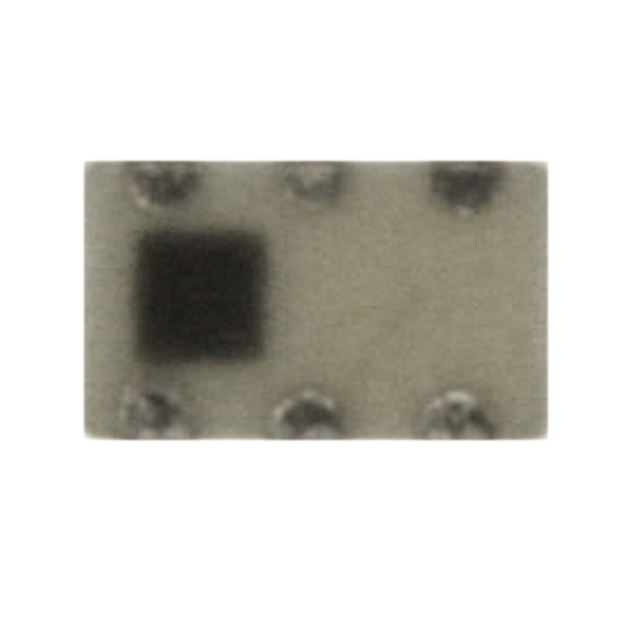

| Technical/Catalog Information | HHM1526 |
| Vendor | TDK Corporation (VA) |
| Category | Transformers |
| Mounting Type | Surface Mount |
| Package / Case | 0805 (2012 metric) |
| Frequency Range | 1710 ~ 1990MHz |
| Impedance - Unbalanced/Balanced | 50 / 100 Ohm |
| Insertion Loss (Max) | 0.8dB |
| Return Loss (Min) | 10dB |
| Phase Difference | 180° ±9 |
| Packaging | Cut Tape (CT) |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | HHM1526 HHM1526 445 3992 1 ND 44539921ND 445-3992-1 |
| Technical/Catalog Information | HHM1541E1 |
| Vendor | TDK Corporation |
| Category | Transformers |
| Mounting Type | Surface Mount |
| Package / Case | 0805 (2012 metric) |
| Frequency Range | 2.3 ~ 2.5GHz |
| Impedance - Unbalanced/Balanced | 50 / 75 Ohm |
| Insertion Loss (Max) | 1.0dB |
| Return Loss (Min) | 10dB |
| Phase Difference | 180° ±10 |
| Packaging | Tape & Reel (TR) |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | HHM1541E1 HHM1541E1 445 3249 2 ND 44532492ND 445-3249-2 |
