H22A4, H22A5, H22B1

Table of contents:
Info of H22A4
Info of H22A5
Info of H22B1

H22A4, H22A5, H22B1 Selling Leads, Datasheet

MFG:Fairchild Optoelectronics Group Category:Sensors, Transducers Package Cooled:N/A D/C:09+

H22A4, H22A5, H22B1 Datasheet download

Five Points

Part Number: H22B1

Category: Sensors, Transducers

MFG: Fairchild Optoelectronics Group

Package Cooled: N/A

D/C: 09+

Description: INTERRUPTER OPTICAL DARL-OUT

Price Break

900

Unit Price

.56700

Extended Price

510.30

(All prices are in USD) Prices for reference only

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

H22A4 Parameters

Technical/Catalog Information	H22A4
Vendor	Fairchild Semiconductor
Category	Sensors, Sensor Evaluation Kits
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	H22A4 H22A4

H22A5 Parameters

Technical/Catalog Information	H22A5
Vendor	Fairchild Semiconductor
Category	Sensors, Sensor Evaluation Kits
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	H22A5 H22A5

H22B1 Parameters

Technical/Catalog Information	H22B1
Vendor	Fairchild Optoelectronics Group
Category	Sensors, Transducers
Sensing Distance	0.119" (3mm)
Sensing Method	Transmissive
Package / Case	PCB Mount
Output Type	Darlington
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	H22B1 H22B1

H22B1 General Description

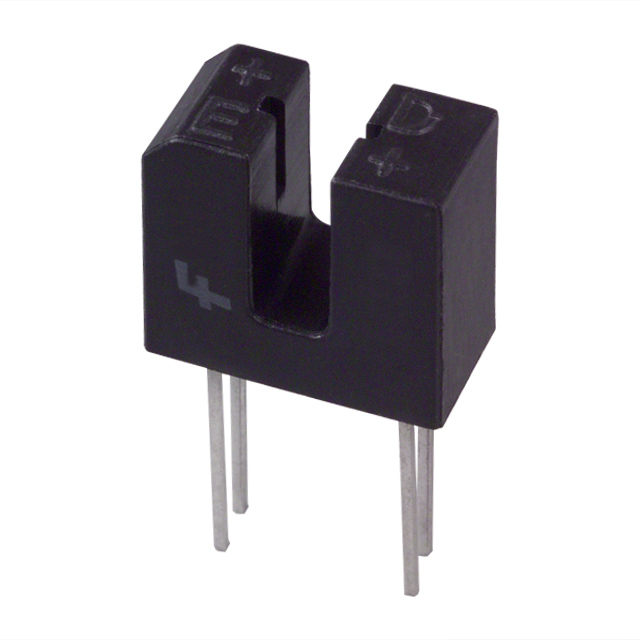

The H22B1, H22B2 and H22B3 consist of a gallium arsenide infrared emitting diode coupled with a silicon photodarlington in a plastic housing. The packaging system is designed to optimize the mechanical resolution, coupling efficiency, ambient light rejection, cost and reliability. The gap in the housing provides a means of interrupting the signal with an opaque material, switching the output from an "ON" to an "OFF" state.

H22B1 Maximum Ratings

Product	Product status	Eco Status	Pricing*	Package type	Leads	Packing method	Package Drawing
H22B1	Full Production	RoHS Compliant	$0.51	Slotted switch	4	RAIL	TBD

* Fairchild 1,000 piece Budgetary Pricing

** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples

H22B1 Features

• Opaque housing
• Low cost
• .035" apertures
• High I _C(ON)
