FXL4T245BQX, FXL5T244BQX, FXLH42245

Table of contents:
Info of FXL4T245BQX
Info of FXL5T244BQX
Info of FXLH42245

FXL4T245BQX, FXL5T244BQX, FXLH42245 Selling Leads, Datasheet

MFG:Fairchild Optoelectronics Group Category:Integrated Circuits (ICs) Package Cooled:QFN D/C:06+

FXL4T245BQX, FXL5T244BQX, FXLH42245 Datasheet download

Five Points

Part Number: FXL4T245BQX

Category: Integrated Circuits (ICs)

MFG: Fairchild Optoelectronics Group

Package Cooled: QFN

D/C: 06+

Description: TRANSLATOR 5BIT DUAL LV 14DQFN

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

FXL4T245BQX Parameters

Technical/Catalog Information	FXL4T245BQX
Vendor	Fairchild Optoelectronics Group (VA)
Category	Integrated Circuits (ICs)

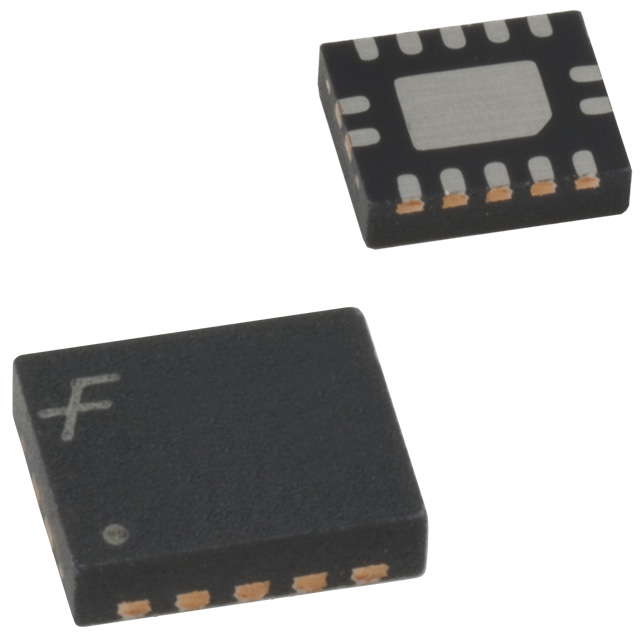

Package / Case	14-DQFN
Packaging	Digi-Reel?
Input Type	Voltage
Output Type	Voltage
Supply Voltage	1.1 V ~ 3.6 V
Data Rate	-
Number of Channels	4
Operating Temperature	-40°C ~ 85°C
Other Names	FXL4T245BQX FXL4T245BQX FXL4T245BQXDKR ND FXL4T245BQXDKRND FXL4T245BQXDKR

FXL5T244BQX Parameters

Technical/Catalog Information	FXL5T244BQX
Vendor	Fairchild Optoelectronics Group
Category	Integrated Circuits (ICs)
Package / Case	14-DQFN
Packaging	Tape & Reel (TR)
Input Type	Logic
Output Type	Logic
Supply Voltage	1.1 V ~ 3.6 V
Data Rate	-
Number of Channels	4
Operating Temperature	-40°C ~ 85°C
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	FXL5T244BQX FXL5T244BQX FXL5T244BQXTR ND FXL5T244BQXTRND FXL5T244BQXTR

FXLH42245 General Description

The FXLH42245 is a configurable dual-voltage-supply translator designed for bi-directional voltage translation of signals between two voltage levels. The device allows translation between voltages as high as 3.6V to as low as 1.1V. The A Port tracks the V_CCA level, and the B Port tracks the V_CCB level. Both ports are designed to accept supply voltage levels from 1.1V to 3.6V. This allows for bidirectional voltage translation over a variety of voltage levels:1.2V, 1.5V, 1.8V, 2.5V, and 3.3V.

The device remains in 3-STATE until both V_CCs reach active levels allowing either V_CC to be powered-up first.The device also contains power down control circuits that place the device in 3-STATE if either V_CC is removed.

The Transmit/Receive (T/R) input determines the direction of data flow through the device. The OE input, when HIGH,disables both the A and B Ports by placing them in a 3-STATE condition. The FXLH42245 is designed so that the control pins (T/R and OE) are supplied by V_CCA.

FXLH42245 Maximum Ratings

V_CCA ................................................................−0.5V to +4.6V
V_CCB ................................................................−0.5V to +4.6V
DC Input Voltage (V_I)
I/O Port A ...............................................−0.5V to V_CCA +0.5V
I/O Port B ...............................................−0.5V to V_CCA+0.5V
Control Inputs (T/R, OE).................................. −0.5V to +4.6V
Output Voltage (VO) (Note 2)
Outputs 3-STATE .............................................−0.5V to +4.6V
Outputs Active (A_n) ...............................−0.5V to V_CCA + 0.5V
Outputs Active (B_n) ...............................−0.5V to V_CCB + 0.5V
DC Input Diode Current (I_IK) V_I< 0V ..........................−50 mA
DC Output Diode Current (_IOK)
V_O< 0V .......................................................................−50 mA
V_O > V_CC .....................................................................+50 mA
DC Output Source/Sink Current
(I_OH/I_OL) ......................................................−50 mA / +50 mA
DC V_CC or Ground Current per
Supply Pin (I_CC) ........................................................±100 mA
Storage Temperature Range (T_STG) ..........−65°C to +150°C

FXLH42245 Features

Bi-directional interface between any 2 levels from 1.1V to 3.6V
Fully configurable, inputs track V_CC level
Non-preferential power-up sequencing; either V_CCmay be powered-up first
Outputs remain in 3-STATE until active V_CC level is reached
Outputs switch to 3-STATE if either V_CC is at GND
Bushold on data inputs eliminates the need for external pull-up/pull-down resistors
26Ω output series resistors on the B Port to reduce line noise
Power-off protection
Control inputs (T/R, OE) levels are referenced to V_CCA voltage
Packaged in 24-terminal MLP
ESD protection exceeds:
• 4kV HBM ESD (per JESD22-A114 & Mil Std 883e 3015.7)
• 8kV HBM I/O to GND ESD (per JESD22-A114 & Mil Std 883e 3015.7)
• 1kV CDM ESD (per ESD STM 5.3)
• 200V MM ESD (per JESD22-A115 & ESD STM5.2)

FXLH42245 Connection Diagram
