FSB50450S, FSB50450T, FSB50550AT Datasheet download
Category: Integrated Circuits (ICs)
MFG: Fairchild Semiconductor
Package Cooled: MODULO
D/C: 06+
Description: IC SPM 500V 3.0A 3PH SPM23AC
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: FSB1014-102
File Size: 74758 KB
Manufacturer: ECM [ECM Electronics Limited.]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: FSB1014-102
File Size: 74758 KB
Manufacturer: ECM [ECM Electronics Limited.]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: FSB1014-102
File Size: 74758 KB
Manufacturer: ECM [ECM Electronics Limited.]
Download : Click here to Download
| Technical/Catalog Information | FSB50450S |
| Vendor | Fairchild Semiconductor |
| Category | Integrated Circuits (ICs) |
| Applications | AC Motor Driver, 3 Phase |
| Number of Outputs | 1 |
| Voltage - Supply | 13.5 V ~ 16.5 V |
| Voltage - Load | 300 V ~ 400 V |
| Current - Output | 3A |
| Operating Temperature | -20°C ~ 125°C |
| Package / Case | SPM23BA |
| Packaging | Tape & Reel (TR) |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | FSB50450S FSB50450S FSB50450STR ND FSB50450STRND FSB50450STR |

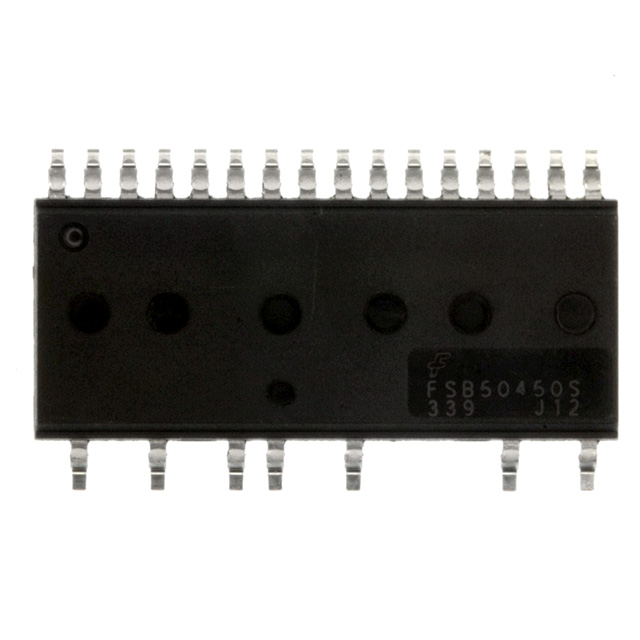

FSB50450S is a tiny smart power module (SPM) based onFRFET technology as a compact inverter solution for smallpower motor drive applications such as fan motors and watersuppliers. It is composed of 6 fast-recovery MOSFET (FRFET),and 3 half-bridge HVICs for FRFET gate driving. FSB50450Sprovides low electromagnetic interference (EMI) characteristicswith optimized switching speed. Moreover, since it employsFRFET as a power switch, it has much better ruggedness andlarger safe operation area (SOA) than that of an IGBT-basedpower module or one-chip solution. The package is optimizedfor the thermal performance and compactness for the use in thebuilt-in motor application and any other application where theassembly space is concerned. FSB50450S is the most solutionfor the compact inverter providing the energy efficiency,compactness, and low electromagnetic interference.
| Product | Product status | Eco Status | Pricing* | Package type | Leads | Packing method | Package Drawing | Package Marking Convention** |
|---|---|---|---|---|---|---|---|---|
| FSB50450S | Full Production | RoHS Compliant | $6.40 | SPM23-BA | 23 | TAPE REEL | N/A | Line 1: $Y (Fairchild logo) Line 2: FSB50450S Line 3: &H&E&E&E&3 |
| * Fairchild 1,000 piece Budgetary Pricing |
| ** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples |
Package marking information for product FSB50450S is available. Click here for more information . |
| Technical/Catalog Information | FSB50450T |
| Vendor | Fairchild Semiconductor |
| Category | Integrated Circuits (ICs) |
| Applications | AC Motor Driver, 3 Phase |
| Number of Outputs | 1 |
| Voltage - Supply | 12 V ~ 16.5 V |
| Voltage - Load | 300 V ~ 400 V |
| Current - Output | 3A |
| Operating Temperature | -20°C ~ 125°C |
| Package / Case | SPM23AC |
| Packaging | Tube |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | FSB50450T FSB50450T |
FSB50450T is a tiny smart power module (SPM) based on FRFET technology as a compact inverter solution for small power motor drive applications such as fan motors and water suppliers. It is composed of 6 fast–recovery MOSFET (FRFET), and 3 half–bridge HVICs for FRFET gate driving. FSB50450T provides low electromagnetic interference (EMI) characteristics with optimized switching speed. Moreover, since it employs FRFET as a power switch, it has much better ruggedness and larger safe operation area (SOA) than that of an IGBT–based power module or one–chip solution. The package is optimized for the thermal performance and compactness for the use in the built–in motor application and any other application where the assembly space is concerned. FSB50450T is the most solution for the compact inverter providing the energy efficiency, compactness, and low electromagnetic interference.
| Product | Product status | Eco Status | Pricing* | Package type | Leads | Packing method | Package Drawing | Package Marking Convention** |
|---|---|---|---|---|---|---|---|---|
| FSB50450T | Full Production | RoHS Compliant | $6.00 | SPM23-AC | 23 | RAIL | TBD | Line 1: $Y (Fairchild logo) Line 2: FSB50450T Line 3: &H&E&E&E&3 |
| * Fairchild 1,000 piece Budgetary Pricing |
| ** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples |
Package marking information for product FSB50450T is available. Click here for more information . |
