MFG:Fairchild Semiconductor Category:Integrated Circuits (ICs) Package Cooled:MOUDLE D/C:2007
FSAM30SH60A, FSAM30SL60A, FSAM30SM60A Datasheet download
Category: Integrated Circuits (ICs)
MFG: Fairchild Semiconductor
Package Cooled: MOUDLE
D/C: 2007

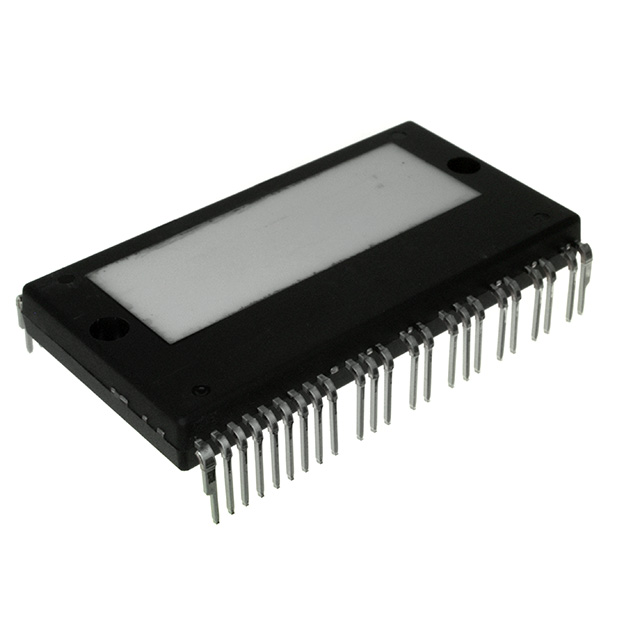

Description: SMART POWER MODULE 30A SPM32-AA
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: FSAM30SH60A
File Size: 1013273 KB
Manufacturer: FAIRCHILD [Fairchild Semiconductor]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: FSA1156
File Size: 498532 KB
Manufacturer: FAIRCHILD [Fairchild Semiconductor]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: FSAM30SM60A
File Size: 2391165 KB
Manufacturer: FAIRCHILD [Fairchild Semiconductor]
Download : Click here to Download
| Technical/Catalog Information | FSAM30SH60A |
| Vendor | Fairchild Semiconductor |
| Category | Integrated Circuits (ICs) |
| Applications | AC Motor Driver, 3 Phase |
| Number of Outputs | 1 |
| Voltage - Supply | 13.5 V ~ 16.5 V |
| Voltage - Load | 300 V ~ 400 V |
| Current - Output | 30A |
| Operating Temperature | -20°C ~ 100°C |
| Package / Case | SPM32AA |
| Packaging | Tube |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | FSAM30SH60A FSAM30SH60A |
FSAM30SH60A is an advanced smart power moduleSPM) that Fairchild has newly developed and designed toprovide very compact and high performance ac motordrives mainly targeting high speed low-power inverterdrivenapplication like washing machines. It combinesoptimized circuit protection and drive matched to low-lossIGBTs. Highly effective short-circuit current detection/protection is realized through the use of advanced currentsensing IGBT chips that allow continuous monitoring of theIGBTs current. System reliability is further enhanced by thebuilt-in over-temperature monitoring and integrated undervoltagelock-out protection. The high speed built-in HVICprovides opto-coupler-less IGBT gate driving capability thatfurther reduce the overall size of the inverter system design.In addition the incorporated HVIC facilitates the use ofsingle-supply drive topology enabling the FSAM30SH60Ato be driven by only one drive supply voltage withoutnegative bias. Inverter current sensing application can beachieved due to the divided negative dc terminals.
| Product | Product status | Eco Status | Pricing* | Package type | Leads | Packing method | Package Drawing | Package Marking Convention** |
|---|---|---|---|---|---|---|---|---|
| FSAM30SH60A | Full Production | RoHS Compliant | $29.30 | SPM32-AA P | 32 | RAIL | TBD | Line 1: $Y (Fairchild logo) Line 2: FSAM30SH60A Line 3: &H&E&E&E&E&E&3 |
| * Fairchild 1,000 piece Budgetary Pricing |
| ** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples |
Package marking information for product FSAM30SH60A is available. Click here for more information . |
| Technical/Catalog Information | FSAM30SM60A |
| Vendor | Fairchild Semiconductor |
| Category | Integrated Circuits (ICs) |
| Applications | AC Motor Driver, 3 Phase |
| Number of Outputs | 1 |
| Voltage - Supply | 13.5 V ~ 16.5 V |
| Voltage - Load | 300 V ~ 400 V |
| Current - Output | 30A |
| Operating Temperature | -20°C ~ 100°C |
| Package / Case | SPM32AA |
| Packaging | Tube |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | FSAM30SM60A FSAM30SM60A |
FSAM30SM60A is an advanced smart power module(SPM) that Fairchild has newly developed and designed toprovide very compact and high performance ac motordrives mainly targeting medium speed low-power inverterdrivenapplication like air conditioners. It combinesoptimized circuit protection and drive matched to low-lossIGBTs. Highly effective short-circuit current detection/protection is realized through the use of advanced currentsensing IGBT chips that allow continuous monitoring of theIGBTs current. System reliability is further enhanced by thebuilt-in over-temperature monitoring and integrated undervoltagelock-out protection. The high speed built-in HVICprovides opto-coupler-less IGBT gate driving capability thatfurther reduce the overall size of the inverter system design.In addition the incorporated HVIC facilitates the use ofsingle-supply drive topology enabling the FSAM30SM60Ato be driven by only one drive supply voltage withoutnegative bias. Inverter current sensing application can beachieved due to the divided negative dc terminals.
| Product | Product status | Eco Status | Pricing* | Package type | Leads | Packing method | Package Drawing | Package Marking Convention** |
|---|---|---|---|---|---|---|---|---|
| FSAM30SM60A | Full Production | RoHS Compliant | $25.40 | SPM32-AA P | 32 | RAIL | TBD | Line 1: $Y (Fairchild logo) Line 2: FSAM30SM60A Line 3: &H&E&E&E&E&E&3 |
| * Fairchild 1,000 piece Budgetary Pricing |
| ** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples |
Package marking information for product FSAM30SM60A is available. Click here for more information . |
