FSA110K8X, FSA110UMX, FSA1156

Table of contents:
Info of FSA110K8X
Info of FSA110UMX
Info of FSA1156

FSA110K8X, FSA110UMX, FSA1156 Selling Leads, Datasheet

MFG:Fairchild Semiconductor (VA) Category:Integrated Circuits (ICs) Package Cooled:N/A D/C:0807+

FSA110K8X, FSA110UMX, FSA1156 Datasheet download

Five Points

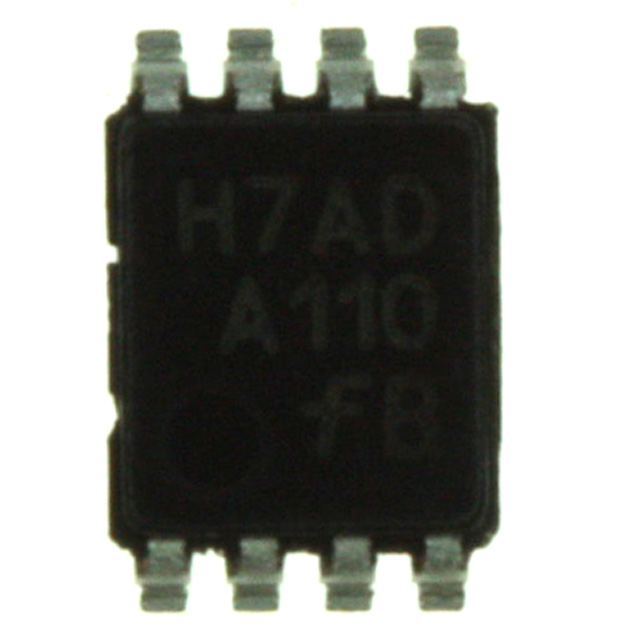

Part Number: FSA110K8X

Category: Integrated Circuits (ICs)

MFG: Fairchild Semiconductor (VA)

Package Cooled: N/A

D/C: 0807+

Description: IC SWITCH AUD/WIRED-OR 10-UMLP

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

FSA110K8X Parameters

Technical/Catalog Information	FSA110K8X
Vendor	Fairchild Semiconductor
Category	Integrated Circuits (ICs)
Applications	USB
Interface	USB
Voltage - Supply	2.7 V ~ 4.3 V
Package / Case	8-VSOP
Packaging	Tape & Reel (TR)
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	FSA110K8X FSA110K8X FSA110K8XTR ND FSA110K8XTRND FSA110K8XTR

FSA110UMX Parameters

Technical/Catalog Information	FSA110UMX
Vendor	Fairchild Semiconductor (VA)
Category	Integrated Circuits (ICs)
Applications	USB
Interface	USB
Voltage - Supply	2.7 V ~ 4.3 V
Package / Case	10-UMLP
Packaging	Cut Tape (CT)
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	FSA110UMX FSA110UMX FSA110UMXCT ND FSA110UMXCTND FSA110UMXCT

FSA1156 Parameters

FSA1156 Features

Maximum 0.9ohm On Resistance (R_ON) for 4.5V supply at 25°C
0.3ohm maximum R_ON flatness for 4.5V supply
Broad V_CC operating range: 1.65V to 5.5V
Fast turn-on and turn-off time
Over-voltage tolerant TTL compatible control input
Available in SC70 and MicroPak™ space saving surface mount packages
Available in Lead (Pb) Free MicroPak packaging

FSA1156 General Description

Low RON Low Voltage SPST Analog Switch

FSA1156 Maximum Ratings

Supply Voltage (V_CC)                                            −0.5V to +6.0V
Switch Voltage (Note 2)                                 −0.5V to V_CC +0.5V
Input Voltage (V_IN) (Note 2)                                 −0.5V to +6.0V
Input Diode Current                                                          −50 mA
Switch Current                                                                   200 mA
Peak Switch Current
   (Pulsed at 1mS duration,
   <10% Duty Cycle)                                                            400 mA
Power Dissipation at 85°C
   SC70 package                                                                180 mW
Storage Temperature Range (T_STG)                −60°C to +150°C
Maximum Junction Temperature (T_J)                                 +150°C
Lead Temperature (T_L)
   (Soldering, 10 seconds)                                                 +260°C
ESD (Human Body Model)                                                     8000V

FSA1156 Features

Maximum 0.9ohm On Resistance (R_ON) for 4.5V supply at 25°C
0.3ohm maximum R_ON flatness for 4.5V supply
Broad V_CC operating range: 1.65V to 5.5V
Fast turn-on and turn-off time
Over-voltage tolerant TTL compatible control input
Available in SC70 and MicroPak™ space saving surface mount packages
Available in Lead (Pb) Free MicroPak packaging

FSA1156 Typical Application

FSA1156 Datasheet

FSA1156 Connection Diagram
