MFG:Fairchild Semiconductor Category:Integrated Circuits (ICs) Package Cooled:PIM D/C:09+
FSAM15SH60A, FSAM15SL60, FSAM15SM60 Datasheet download
Category: Integrated Circuits (ICs)
MFG: Fairchild Semiconductor
Package Cooled: PIM
D/C: 09+
Description: SMART POWER MODULE 15A SPM32-AA
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: FSAM15SH60A
File Size: 2073721 KB
Manufacturer: FAIRCHILD [Fairchild Semiconductor]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: FSAM15SL60
File Size: 2405694 KB
Manufacturer: FAIRCHILD [Fairchild Semiconductor]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: FSAM15SM60
File Size: 2394821 KB
Manufacturer: FAIRCHILD [Fairchild Semiconductor]
Download : Click here to Download
| Technical/Catalog Information | FSAM15SH60A |
| Vendor | Fairchild Semiconductor |
| Category | Integrated Circuits (ICs) |
| Applications | AC Motor Driver, 3 Phase |
| Number of Outputs | 1 |
| Voltage - Supply | 13.5 V ~ 16.5 V |
| Voltage - Load | 300 V ~ 400 V |
| Current - Output | 15A |
| Operating Temperature | -20°C ~ 100°C |
| Package / Case | SPM32AA |
| Packaging | Tube |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | FSAM15SH60A FSAM15SH60A |

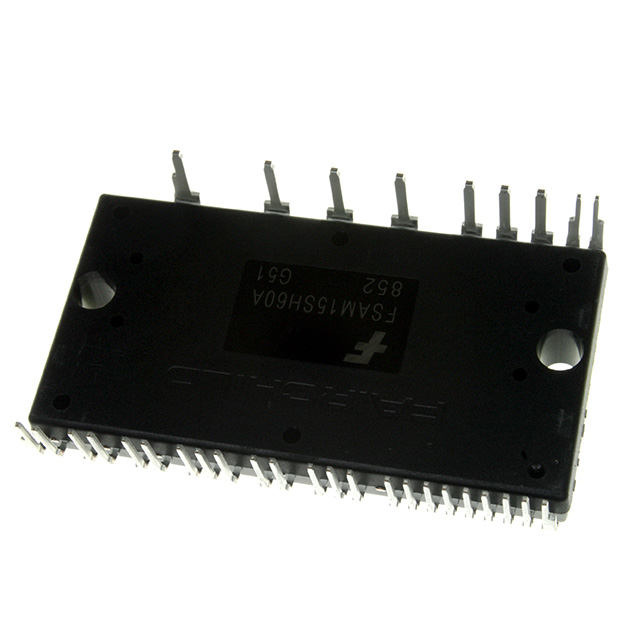

FSAM15SH60A is an advanced smart power module(SPM) that Fairchild has newly developed and designed toprovide very compact and high performance ac motordrives mainly targeting high speed low-power inverterdrivenapplication like washing machines. It combinesoptimized circuit protection and drive matched to low-lossIGBTs. Highly effective short-circuit current detection/protection is realized through the use of advanced currentsensing IGBT chips that allow continuous monitoring of theIGBTs current. System reliability is further enhanced by thebuilt-in over-temperature monitoring and integrated undervoltagelock-out protection. The high speed built-in HVICprovides opto-coupler-less IGBT gate driving capability thatfurther reduce the overall size of the inverter system design.In addition the incorporated HVIC facilitates the use ofsingle-supply drive topology enabling the FSAM15SH60Ato be driven by only one drive supply voltage withoutnegative bias. Inverter current sensing application can beachieved due to the divided negative dc terminals.
| Product | Product status | Eco Status | Pricing* | Package type | Leads | Packing method | Package Drawing | Package Marking Convention** |
|---|---|---|---|---|---|---|---|---|
| FSAM15SH60A | Full Production | RoHS Compliant | $24.80 | SPM32-AA P | 32 | RAIL | TBD | Line 1: $Y (Fairchild logo) Line 2: FSAM15SH60A Line 3: &H&E&E&E&E&E&3 |
| * Fairchild 1,000 piece Budgetary Pricing |
| ** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples |
Package marking information for product FSAM15SH60A is available. Click here for more information . |
| Technical/Catalog Information | FSAM15SL60 |
| Vendor | Fairchild Semiconductor |
| Category | Integrated Circuits (ICs) |
| Applications | AC Motor Driver, 3 Phase |
| Number of Outputs | 1 |
| Voltage - Supply | 13.5 V ~ 16.5 V |
| Voltage - Load | 300 V ~ 400 V |
| Current - Output | 15A |
| Operating Temperature | -20°C ~ 100°C |
| Package / Case | SPM32AA |
| Packaging | Tube |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | FSAM15SL60 FSAM15SL60 |
FSAM15SL60 is an advanced smart power module (SPM)that Fairchild has newly developed and designed to provide very compact and high performance ac motor drives mainly targeting low speed low-power inverter-driven application like air conditioners. It combines optimized circuit protection and drive matched to low-loss IGBTs. Highly effective short-circuit current detection/protection is realized through the use of advanced current sensing IGBT chips that allow continuous monitoring of the IGBTs current. System reliability is further enhanced by the built-in overtemperature monitoring and integrated under-voltage lockout protection. The high speed built-in HVIC provides optocoupler-less IGBT gate driving capability that further reduce the overall size of the inverter system design. In addition the incorporated HVIC facilitates the use of single-supply drive topology enabling the FSAM15SL60 to be driven by only one drive supply voltage without negative bias. Inverter current sensing application can be achieved due to the divided negative dc terminals.
| Item | Symbol | Condition | Rating | Unit |
| Supply Voltage | VPN | Applied between P- NU, NV, NW | 450 | V |
| Supply Voltage (Surge) | VPN(Surge) | Applied between P- NU, NV, NW | 500 | V |
| Collector-Emitter Voltage | VCES | 600 | V | |
| Each IGBT Collector Current | ± IC | TC = 25°C | 15 | A |
| Each IGBT Collector Current | ± IC | TC = 100°C | 10 | A |
| Each IGBT Collector Current (Peak) | ± ICP | TC = 25°C, Instantaneous Value (Pulse) |
30 | A |
| Collector Dissipation | PC | TC = 25°C per One Chip | 46 | W |
| Operating Junction Temperature | TJ | (Note 1) | -20 ~ 125 |
