MFG:Diodes Inc Category:Discrete Semiconductor Products Package Cooled:TO-220 D/C:808
FR805, FR806, FR9014 Datasheet download
Category: Discrete Semiconductor Products
MFG: Diodes Inc
Package Cooled: TO-220
D/C: 808

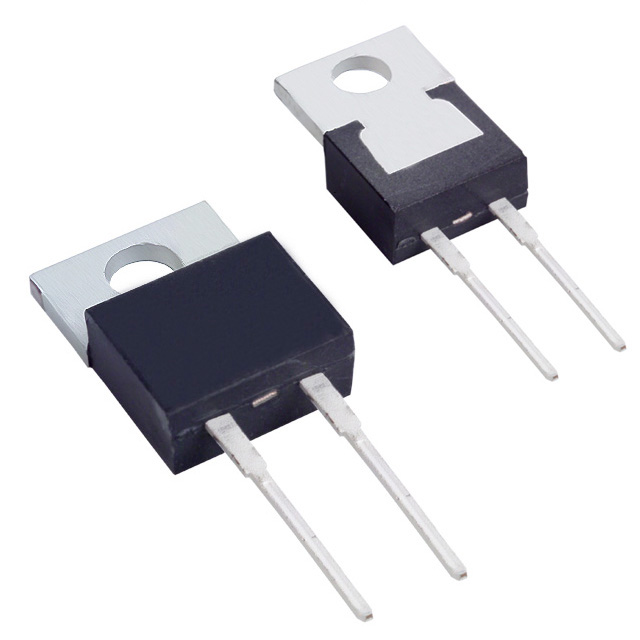

Description: RECT FAST REC 600V 8A TO220-2
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: FR805
File Size: 37828 KB
Manufacturer: RECTRON [Rectron Semiconductor]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: FR806
File Size: 37828 KB
Manufacturer: RECTRON [Rectron Semiconductor]
Download : Click here to Download
PDF/DataSheet Download
Datasheet:
File Size: KB
Manufacturer:
Download : Click here to Download
| Technical/Catalog Information | FR805 |
| Vendor | Diodes Inc |
| Category | Discrete Semiconductor Products |
| Diode Type | Standard |
| Voltage - DC Reverse (Vr) (Max) | 600V |
| Current - Average Rectified (Io) | 8A |
| Voltage - Forward (Vf) (Max) @ If | 1.3V @ 8A |
| Reverse Recovery Time (trr) | 250ns |
| Current - Reverse Leakage @ Vr | 10A @ 600V |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Mounting Type | Through Hole, Radial |
| Package / Case | TO-220-2 (Straight Leads) |
| Packaging | Tube |
| Capacitance @ Vr, F | - |
| Lead Free Status | Lead Free Compliant by Exemption |
| RoHS Status | RoHS Compliant |
| Other Names | FR805 FR805 |
| Symbols | FR801 | FR802 | FR803 | FR804 | FR805 | FR806 | Units | ||
| Maximum Recurrent peak reverse voltage |
VRRM | 50 | 100 | 200 | 400 | 600 | 800 | V | |
| Maximum RMS voltage | VRMS | 35 | 70 | 140 | 280 | 420 | 560 | V | |
| Maximum DC blocking voltage | VDC | 50 | 100 | 200 | 400 | 600 | 800 | V | |
|
Maximum Average Forward RectifiedCurrent.375"(9.5mm) Lead Length @TA = 55 |
IAV | 8.0 | A | ||||||
| Peak forward surge current 8.3mS single half sine-wave Superimposed on Rated Load (JEDEC method ) | IFSM | 200 | A | ||||||
| Maximum instantaneous forward voltage @ 1.5A |
VF |
1.3 | V | ||||||
| Maximum DC reverse current @ TA=25 at rated DC blocking voltage @ TA=100 |
IR | 10.0 200.0 |
uA | ||||||
| Maximum reverse recovery time ( Note 1) |
Trr |
150 | 250 | 500 | nS | ||||
| Typical Junction Capacitance(Note2 | Cj |
65 | pF | ||||||
| Operating Temperature Range | TJ | -65 to +150 | |||||||
| Symbols | FR801 | FR802 | FR803 | FR804 | FR805 | FR806 | Units | ||
| Maximum Recurrent peak reverse voltage |
VRRM | 50 | 100 | 200 | 400 | 600 | 800 | V | |
| Maximum RMS voltage | VRMS | 35 | 70 | 140 | 280 | 420 | 560 | V | |
| Maximum DC blocking voltage | VDC | 50 | 100 | 200 | 400 | 600 | 800 | V | |
|
Maximum Average Forward RectifiedCurrent.375"(9.5mm) Lead Length @TA = 55 |
IAV | 8.0 | A | ||||||
| Peak forward surge current 8.3mS single half sine-wave Superimposed on Rated Load (JEDEC method ) | IFSM | 200 | A | ||||||
| Maximum instantaneous forward voltage @ 1.5A |
VF |
1.3 | V | ||||||
| Maximum DC reverse current @ TA=25 at rated DC blocking voltage @ TA=100 |
IR | 10.0 200.0 |
uA | ||||||
| Maximum reverse recovery time ( Note 1) |
Trr |
150 | 250 | 500 | nS | ||||
| Typical Junction Capacitance(Note2 | Cj |
65 | pF | ||||||
| Operating Temperature Range | TJ | -65 to +150 | |||||||
