FJE3303H1TU, FJE5304D, FJH1100

FJE3303H1TU, FJE5304D, FJH1100 Selling Leads, Datasheet

MFG:Fairchild Optoelectronics Group  Category:Discrete Semiconductor Products  Package Cooled:TO263  D/C:08.09+

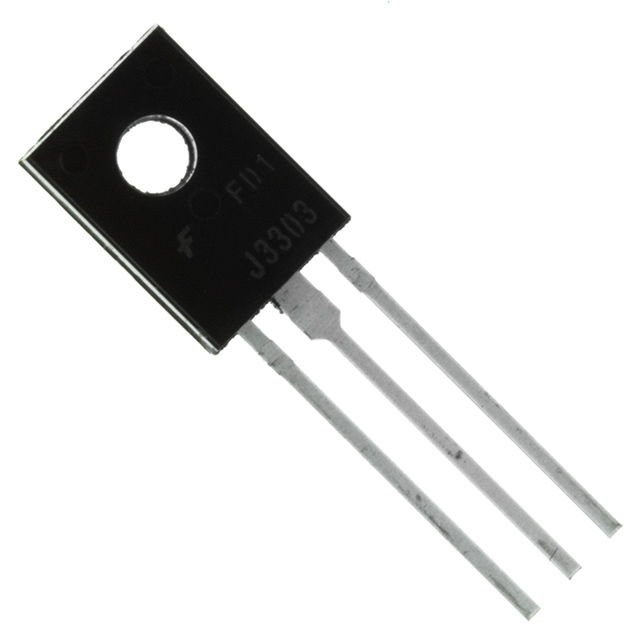

FJE3303H1TU Picture

FJE3303H1TU, FJE5304D, FJH1100 Datasheet download

Five Points

Part Number: FJE3303H1TU

Category: Discrete Semiconductor Products

MFG: Fairchild Optoelectronics Group

Package Cooled: TO263

D/C: 08.09+

Description: DIODE ULTRA LOW LEAK 250MW DO-35

Price Break

1
25
100
250
500
1000
5000
10000

Unit Price

.41000
.33280
.22820
.17120
.13314
.11412
.10144
.09510

Extended Price

0.41
8.32
22.82
42.80
66.57
114.12
507.20
951.00

(All prices are in USD) Prices for reference only
Urgent Purchase
Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.


 How to buy ?       How long will receive a response.

Top Sellers:

TOP

FJE3303H1TU Suppliers

More FJE3303H1TU Suppliers

Select All

About FJE3303

PDF/DataSheet Download

Datasheet: FJE3303

File Size: 72684 KB

Manufacturer: FAIRCHILD [Fairchild Semiconductor]

Download : Click here to Download

Related PDF Download

Related Part Number

FJE5304D Suppliers

More FJE5304D Suppliers

Select All

About FJE5304D

PDF/DataSheet Download

Datasheet: FJE5304D

File Size: 91224 KB

Manufacturer: FAIRCHILD [Fairchild Semiconductor]

Download : Click here to Download

Related PDF Download

Related Part Number

FJH1100 Suppliers

More FJH1100 Suppliers

Select All

  • FJH1100

  • Vendor: FSC Pack: Original D/C: 12+& Qty: 2000000  Adddate: 2024-12-19
  • Inquire Now
  • TODENKI ELECTRONICS COMPANY   China
    Contact: Ms.Alice
    Tel: 86-755-82565937
    Fax: 86-755-83206987
    (14)

  • FJH1100

  • Vendor: FSC Pack: Original D/C: 12+& Qty: 2000000  Adddate: 2024-12-19
  • Inquire Now
  • TODENKI ELECTRONICS COMPANY   China
    Contact: Ms.Alice
    Tel: 86-755-82565937
    Fax: 86-755-83206987
    (14)

About FJH1100

PDF/DataSheet Download

Datasheet: FJH1100

File Size: 125614 KB

Manufacturer: FAIRCHILD [Fairchild Semiconductor]

Download : Click here to Download

Related PDF Download

Related Part Number

FJE3303H1TU Parameters

Technical/Catalog InformationFJE3303H1TU
VendorFairchild Semiconductor
CategoryDiscrete Semiconductor Products
Transistor TypeNPN
Voltage - Collector Emitter Breakdown (Max)400V
Current - Collector (Ic) (Max)1.5A
Power - Max20W
DC Current Gain (hFE) (Min) @ Ic, Vce8 @ 500mA, 2V
Vce Saturation (Max) @ Ib, Ic500mV @ 100mA, 500mA
Frequency - Transition4MHz
Current - Collector Cutoff (Max)-
Mounting TypeThrough Hole
Package / CaseTO-126
PackagingTube
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names FJE3303H1TU
FJE3303H1TU

FJE5304D Parameters

Technical/Catalog InformationFJE5304D
VendorFairchild Semiconductor
CategoryDiscrete Semiconductor Products
Transistor TypeNPN
Voltage - Collector Emitter Breakdown (Max)400V
Current - Collector (Ic) (Max)4A
Power - Max30W
DC Current Gain (hFE) (Min) @ Ic, Vce10 @ 10mA, 5V
Vce Saturation (Max) @ Ib, Ic700mV @ 100mA, 500mA
Frequency - Transition-
Current - Collector Cutoff (Max)100A
Mounting TypeThrough Hole
Package / CaseTO-126
PackagingBulk
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names FJE5304D
FJE5304D

FJE5304D Maximum Ratings

Symbol Parameter

          Value

 Unit
VCBO

Collector-Base Voltage

 700 V
VCEO

Collector-Emitter Voltage

 400 V
VEBO

Emitter-Base Voltage

 12 V
IC

Collector Current (DC)

 4 A
ICP * Collector Current (Pulse)

 8

 A

IB Base Current (DC)

 2

 A

IBP * Base Current (Pulse)

 4

 A

PC

Collector Dissipation (TC=25°C)

 30 W
TSTG

Storage Temperature

- 65 ~ 150

* Pulse Test Pulse Width = 5ms, Duty Cycle 1.0%

FJE5304D Typical Application

• Wide Safe Operating Area
• Built-in Free Wheeling diode
• Suitable for Electronic Ballast Application
• Small Variance in Storage Time

FJH1100 Parameters

Technical/Catalog InformationFJH1100
VendorFairchild Optoelectronics Group
CategoryDiscrete Semiconductor Products
Diode Type Standard
Voltage - DC Reverse (Vr) (Max)15V
Current - Average Rectified (Io)150mA (DC)
Voltage - Forward (Vf) (Max) @ If1.07V @ 100mA
Reverse Recovery Time (trr)-
Current - Reverse Leakage @ Vr10pA @ 15V
SpeedSmall Signal =< 200mA (Io), Any Speed
Mounting TypeThrough Hole, Axial
Package / CaseDO-35, Axial
PackagingBulk
Capacitance @ Vr, F2pF @ 0V, 1MHz
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names FJH1100
FJH1100

FJH1100 General Description

An Ultra Low Leakage Diode in the DO-35 package. The forward voltage is typically greater than 0.5 volts at 1.0 micro-ampere.

This product is light sensitive, any damage to the body coating will affect the reverse leakage when exposed t light.

FJH1100 Maximum Ratings

Sym Parameter Value Units
Tstg Storage Temperature -55 to +200
TJ Operating Junction Temperature 170
PD
Total Power Dissipation at TA = 25 		250 mW

Linear Derating Factor from TA = 25
1.67 mW/
ROJA Thermal Resistance Junction-to-Ambient 300 /W
Wiv Working Inverse Voltage 15 V
IF DC Forward Current (IF) 150 mA
