FFP06U40DN, FFP08H60S, FFP08H60STU

Table of contents:
Info of FFP06U40DN
Info of FFP08H60S
Info of FFP08H60STU

FFP06U40DN, FFP08H60S, FFP08H60STU Selling Leads, Datasheet

MFG:Fairchild Semiconductor Category:Discrete Semiconductor Products Package Cooled:TO-220 D/C:09+

FFP06U40DN, FFP08H60S, FFP08H60STU Datasheet download

Five Points

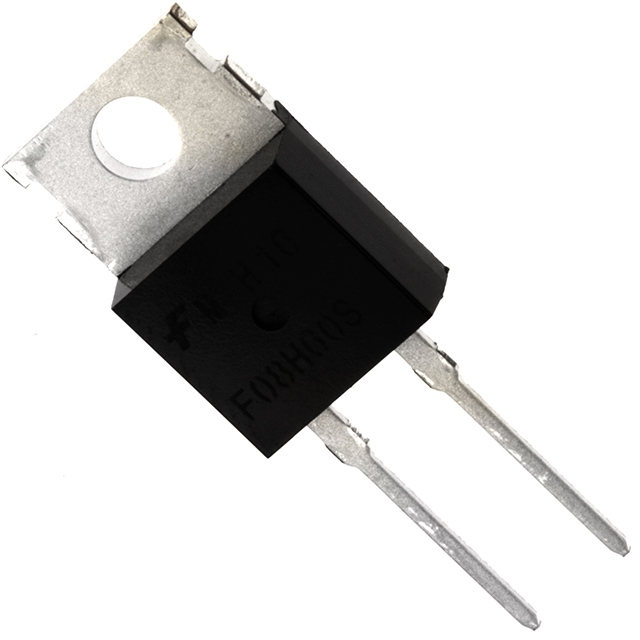

Part Number: FFP08H60STU

Category: Discrete Semiconductor Products

MFG: Fairchild Semiconductor

Package Cooled: TO-220

D/C: 09+

Description: DIODE ULTRA FAST 600V TO-220

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

FFP06U40DN Maximum Ratings

Symbol	Parameter	Value	Units
V_RRM	Peak Repetitive Reverse Voltage	400	V
I_F(AV)	Average Rectified Forward Current @ T_C = 100°C	69	A
I_FSM	Non-repetitive Peak Surge Current 60Hz Single Half-Sine Wave	60	A
T_J, T_STG	Operating Junction and Storage Temperature	- 65 to +150	°C

FFP06U40DN Features

• Ultrafast with soft recovery
• Low forward voltage

FFP06U40DN Typical Application

• Power switching circuits
• Output rectifiers
• Freewheeling diodes
• Switching mode power supply

FFP08H60S Maximum Ratings

Symbol	Parameter	Value	Units
V_RRM	Peak Repetitive Reverse Voltage	600	V
V_RWM	Working Peak Reverse Voltage	600	V
V_R	DC Blocking Voltage	600	V
I_F(AV)	Average Rectified Forward Current @ T_C = 120°C	8	A
I_FSM	Non-repetitive Peak Surge Current 60Hz Single Half-Sine Wave	60	A
T_J, T_STG	Operating Junction and Storage Temperature	- 65 to +150	°C

FFP08H60S Features

• High Speed Switching
• High Reverse Voltage and High Reliability
• Avalanche Energy Rated
• Low Forward Voltage

FFP08H60S Typical Application

• General Purpose
• Switching Mode Power Supply
• Free-wheeling diode for motor application
• Power switching circuits

FFP08H60STU Parameters

Technical/Catalog Information	FFP08H60STU
Vendor	Fairchild Semiconductor
Category	Discrete Semiconductor Products
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	600V
Current - Average Rectified (Io)	8A
Voltage - Forward (Vf) (Max) @ If	2.1V @ 8A
Reverse Recovery Time (trr)	45ns
Current - Reverse Leakage @ Vr	100A @ 600V
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Mounting Type	Through Hole, Radial
Package / Case	TO-220
Packaging	Tube
Capacitance @ Vr, F	-
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	FFP08H60STU FFP08H60STU
