MFG:Fairchild Semiconductor Category:Integrated Circuits (ICs) Package Cooled:SC89 D/C:2010+
FDY4001CZ, FDY4001CZCT, FDY6342L Datasheet download
Category: Integrated Circuits (ICs)
MFG: Fairchild Semiconductor
Package Cooled: SC89
D/C: 2010+
Description: IC LOAD SWITCH 8V -0.83A SC89-6
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet:
File Size: KB
Manufacturer:
Download : Click here to Download
PDF/DataSheet Download
Datasheet:
File Size: KB
Manufacturer:
Download : Click here to Download
PDF/DataSheet Download
Datasheet:
File Size: KB
Manufacturer:
Download : Click here to Download
| Technical/Catalog Information | FDY6342L |
| Vendor | Fairchild Semiconductor |
| Category | Integrated Circuits (ICs) |
| Type | High Side Switch |
| Number of Outputs | 1 |
| Voltage - Input | 2.5 ~ 8 V |

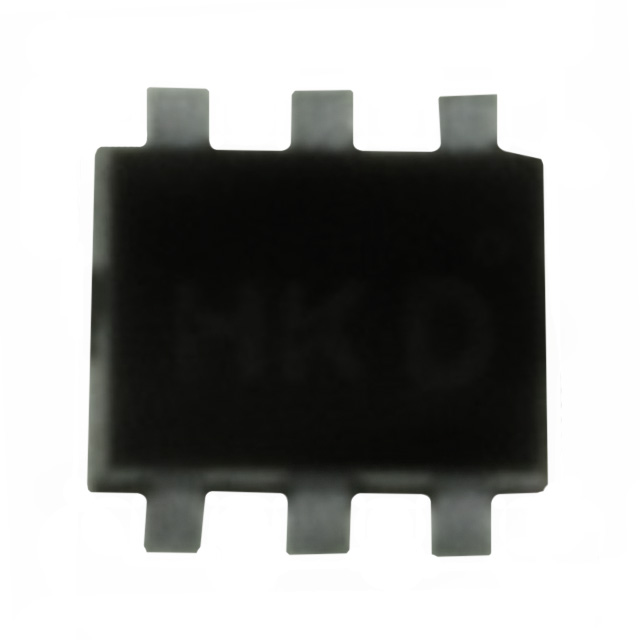

| Package / Case | SC-89-6, SOT-666 |
| Packaging | Tape & Reel (TR) |
| Current Limit | 830mA |
| Internal Switch(s) | Yes |
| Operating Temperature | -55°C ~ 150°C |
| Rds (On) | 500 mOhm |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | FDY6342L FDY6342L FDY6342LTR ND FDY6342LTRND FDY6342LTR |
This device is particularly suited for compact powermanagement in portable electronic equipment where 2.5 V to8 V input and 0.83 A output current capability are needed. Thisload switch integrates a small N-Channel power MOSFET (Q1)that drives a large P-Channel power MOSFET (Q2) in one tinySC89-6 package.
| Product | Product status | Eco Status | Pricing* | Package type | Leads | Packing method | Package Drawing | Package Marking Convention** |
|---|---|---|---|---|---|---|---|---|
| FDY6342L | Full Production | RoHS Compliant | $0.21 | SC89 | 6 | TAPE REEL | Line 1: &2 (2-Digit Date Code) H |
| * Fairchild 1,000 piece Budgetary Pricing |
| ** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples |
Package marking information for product FDY6342L is available. Click here for more information . |
