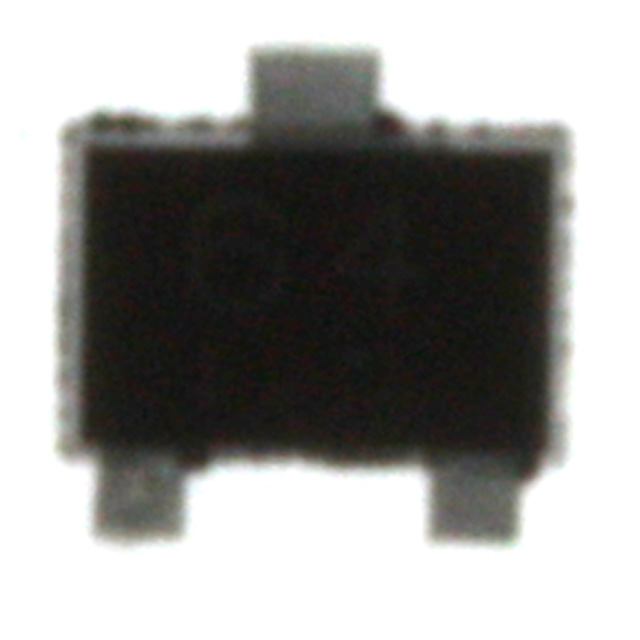

MFG:Rohm Semiconductor Category:Discrete Semiconductor Products Package Cooled:SOT523 D/C:09+
DTC114YMT2L, DTC114YS, DTC114YSATP Datasheet download
Category: Discrete Semiconductor Products
MFG: Rohm Semiconductor
Package Cooled: SOT523
D/C: 09+
Description: TRANSISTOR NPN 50V 70MA SPT TB
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: DTC10C-N
File Size: 104096 KB
Manufacturer: SANYO [Sanyo Semicon Device]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: DTC114YS
File Size: 899085 KB
Manufacturer: ROHM [Rohm]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: DTC10C-N
File Size: 104096 KB
Manufacturer: SANYO [Sanyo Semicon Device]
Download : Click here to Download
| Technical/Catalog Information | DTC114YMT2L |
| Vendor | Rohm Semiconductor |
| Category | Discrete Semiconductor Products |
| Transistor Type | NPN - Pre-Biased |
| Voltage - Collector Emitter Breakdown (Max) | 50V |
| Current - Collector (Ic) (Max) | 100mA |
| Power - Max | 150mW |
| Resistor - Base (R1) (Ohms) | 10K |
| Resistor - Emitter Base (R2) (Ohms) | 2.1K |
| Vce Saturation (Max) @ Ib, Ic | 300mV @ 250A, 5mA |
| Current - Collector Cutoff (Max) | - |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 68 @ 5mA, 5V |
| Frequency - Transition | 250MHz |
| Mounting Type | Surface Mount |
| Package / Case | VMT3 |
| Packaging | Tape & Reel (TR) |
| Drawing Number | * |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | DTC114YMT2L DTC114YMT2L DTC114YMT2LTR ND DTC114YMT2LTRND DTC114YMT2LTR |
| Technical/Catalog Information | DTC114YSATP |
| Vendor | Rohm Semiconductor |
| Category | Discrete Semiconductor Products |
| Transistor Type | NPN - Pre-Biased |
| Voltage - Collector Emitter Breakdown (Max) | 50V |
| Current - Collector (Ic) (Max) | 100mA |
| Power - Max | 300mW |
| Resistor - Base (R1) (Ohms) | 10K |
| Resistor - Emitter Base (R2) (Ohms) | 2.1K |
| Vce Saturation (Max) @ Ib, Ic | 300mV @ 250A, 5mA |
| Current - Collector Cutoff (Max) | - |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 68 @ 5mA, 5V |
| Frequency - Transition | 250MHz |
| Mounting Type | Through Hole |
| Package / Case | SC-72-3, SPT |
| Packaging | Tape & Box (TB) |
| Drawing Number | * |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | DTC114YSATP DTC114YSATP |
