DN6848S-(E1), DN6849S, DN6851

DN6848S-(E1), DN6849S, DN6851 Selling Leads, Datasheet

MFG:Panasonic - SSG  Category:Sensors, Transducers  Package Cooled:SOH-4  D/C:96

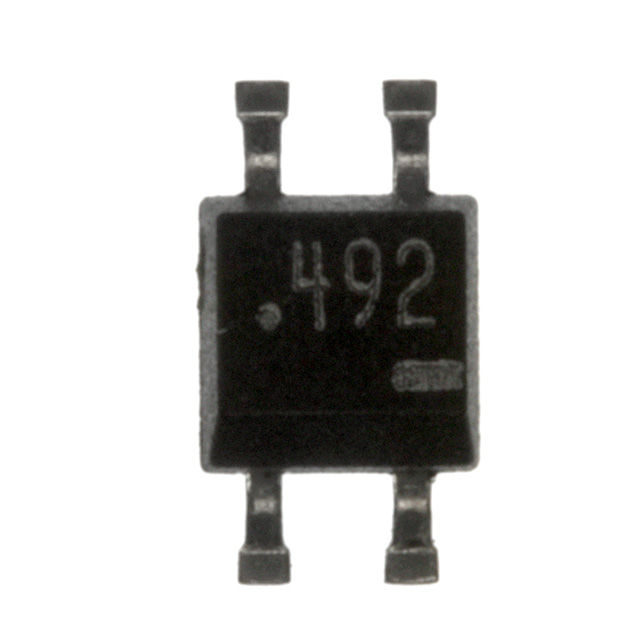

DN6849S Picture

DN6848S-(E1), DN6849S, DN6851 Datasheet download

Five Points

Part Number: DN6849S

Category: Sensors, Transducers

MFG: Panasonic - SSG

Package Cooled: SOH-4

D/C: 96

Description: IC HALL EFF SENSOR BI-DIR SOH-4D
