DFLR1200-7, DFLR1400-7, DFLR1600-7

Table of contents:
Info of DFLR1200-7
Info of DFLR1400-7
Info of DFLR1600-7

DFLR1200-7, DFLR1400-7, DFLR1600-7 Selling Leads, Datasheet

MFG:Diodes Inc Category:Discrete Semiconductor Products Package Cooled:PowerDI 123 D/C:07+

DFLR1200-7, DFLR1400-7, DFLR1600-7 Datasheet download

Five Points

Part Number: DFLR1200-7

Category: Discrete Semiconductor Products

MFG: Diodes Inc

Package Cooled: PowerDI 123

D/C: 07+

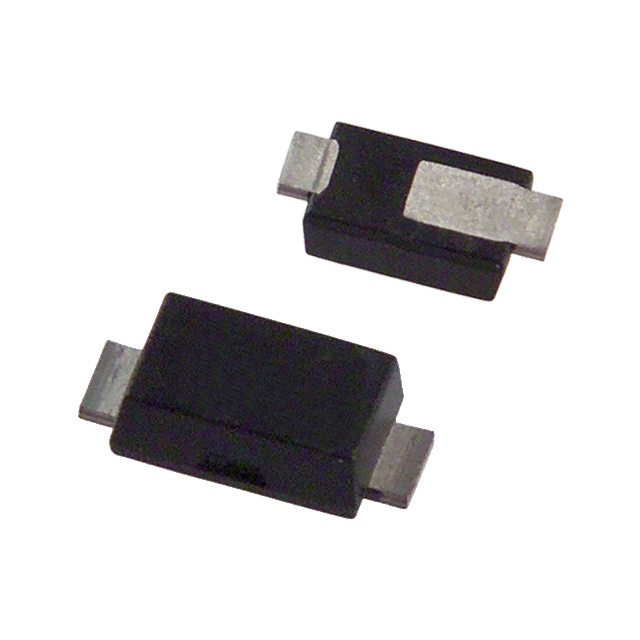

Description: DIODE STD REC 1A 600V POWERDI123

Price Break

1
10
100
250
500
1000

Unit Price

.52000
.36900
.24200
.18152
.16500
.13200

Extended Price

0.52
3.69
24.20
45.38
82.50
132.00

(All prices are in USD) Prices for reference only

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

DFLR1200-7 Parameters

Technical/Catalog Information	DFLR1200-7
Vendor	Diodes Inc (VA)
Category	Discrete Semiconductor Products
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	200V
Current - Average Rectified (Io)	1A
Voltage - Forward (Vf) (Max) @ If	1.1V @ 1A
Reverse Recovery Time (trr)	-
Current - Reverse Leakage @ Vr	3A @ 200V
Speed	Standard Recovery >500ns, > 200mA (Io)
Mounting Type	Surface Mount
Package / Case	PowerDI? 123
Packaging	Cut Tape (CT)
Capacitance @ Vr, F	10pF @ 4V, 1MHz
Lead Free Status	Lead Free Compliant by Exemption
RoHS Status	RoHS Compliant
Other Names	DFLR1200 7 DFLR12007 DFLR1200DICT ND DFLR1200DICTND DFLR1200DICT

DFLR1400-7 Parameters

Technical/Catalog Information	DFLR1400-7
Vendor	Diodes Inc (VA)
Category	Discrete Semiconductor Products
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	400V
Current - Average Rectified (Io)	1A
Voltage - Forward (Vf) (Max) @ If	1.1V @ 1A
Reverse Recovery Time (trr)	-
Current - Reverse Leakage @ Vr	3A @ 400V
Speed	Standard Recovery >500ns, > 200mA (Io)
Mounting Type	Surface Mount
Package / Case	PowerDI? 123
Packaging	Digi-Reel?
Capacitance @ Vr, F	10pF @ 4V, 1MHz
Lead Free Status	Lead Free Compliant by Exemption
RoHS Status	RoHS Compliant
Other Names	DFLR1400 7 DFLR14007 DFLR1400DIDKR ND DFLR1400DIDKRND DFLR1400DIDKR

DFLR1600-7 Parameters

Technical/Catalog Information	DFLR1600-7
Vendor	Diodes Inc
Category	Discrete Semiconductor Products
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	600V
Current - Average Rectified (Io)	1A
Voltage - Forward (Vf) (Max) @ If	1.1V @ 1A
Reverse Recovery Time (trr)	-
Current - Reverse Leakage @ Vr	3A @ 600V
Speed	Standard Recovery >500ns, > 200mA (Io)
Mounting Type	Surface Mount
Package / Case	PowerDI? 123
Packaging	Tape & Reel (TR)
Capacitance @ Vr, F	10pF @ 4V, 1MHz
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	DFLR1600 7 DFLR16007
