DCR010505P, DCR010505U, DCR011203P

Table of contents:
Info of DCR010505P
Info of DCR010505U
Info of DCR011203P

DCR010505P, DCR010505U, DCR011203P Selling Leads, Datasheet

MFG:Texas Instruments Category:Integrated Circuits (ICs) Package Cooled:2009+ROHS D/C:5000

DCR010505P, DCR010505U, DCR011203P Datasheet download

Five Points

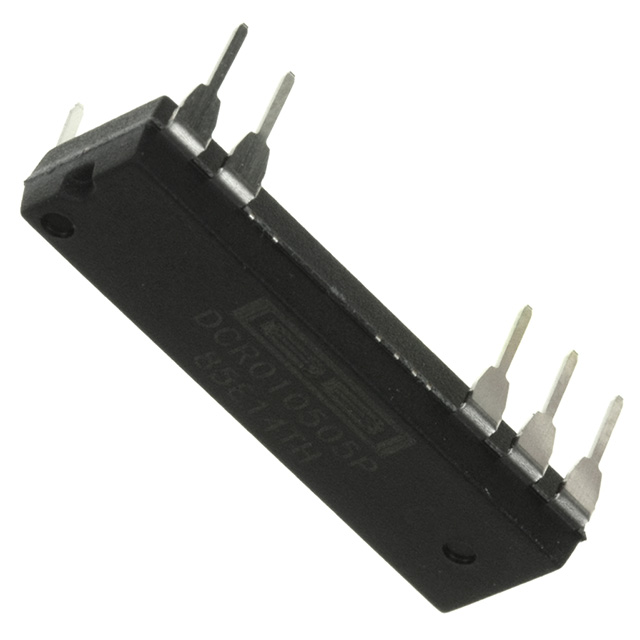

Part Number: DCR010505P

Category: Integrated Circuits (ICs)

MFG: Texas Instruments

Package Cooled: 2009+ROHS

D/C: 5000

Description: IC 1W DC/DC CONV 12V/3V 18-DIP

Price Break

1
25
100
250
500
1000
5000

Unit Price

9.91000
8.92520
7.91350
7.58624
7.43750
7.34825
7.14000

Extended Price

9.91
223.13
791.35
1896.56
3718.75
7348.25
35700.00

(All prices are in USD) Prices for reference only

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

DCR010505P Parameters

Technical/Catalog Information	DCR010505P
Vendor	Texas Instruments
Category	Integrated Circuits (ICs)
Type	Isolated
Number of Outputs	1
Voltage - Input	4.5 ~ 5.5 V
Voltage - Output	5V
Current - Output	200mA
Power - Output	1W
Package / Case	18-DIP (10-Lead, 300 mil)
Packaging	Tube
Internal Switch(s)	Yes
Synchronous	Yes
Rds (On)	-
Operating Temperature	-40°C ~ 85°C
Frequency - Switching	400kHz
Drawing Number	296; 4202497; NVE; 10
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	DCR010505P DCR010505P

DCR010505U Parameters

Technical/Catalog Information	DCR010505U
Vendor	Texas Instruments
Category	Integrated Circuits (ICs)
Type	Isolated
Number of Outputs	1
Voltage - Input	4.5 ~ 5.5 V
Voltage - Output	5V
Current - Output	200mA
Power - Output	1W
Package / Case	28-SOIC (7.5mm Width), 12 Leads
Packaging	Tube
Internal Switch(s)	Yes
Synchronous	Yes
Rds (On)	-
Operating Temperature	-40°C ~ 85°C
Frequency - Switching	400kHz
Drawing Number	296; 4202104; DVB; 12
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	DCR010505U DCR010505U 296 9451 5 ND 29694515ND 296-9451-5

DCR011203P Parameters

Technical/Catalog Information	DCR011203P
Vendor	Texas Instruments
Category	Integrated Circuits (ICs)
Type	Isolated
Number of Outputs	1
Voltage - Input	10.8 ~ 13.2 V
Voltage - Output	3.3V
Current - Output	390mA
Power - Output	1W
Package / Case	18-DIP (10-Lead, 300 mil)
Packaging	Tube
Internal Switch(s)	Yes
Synchronous	Yes
Rds (On)	-
Operating Temperature	-40°C ~ 85°C
Frequency - Switching	400kHz
Drawing Number	296; 4202497; NVE; 10
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	DCR011203P DCR011203P
