MFG:Coiltronics/Div of Cooper/Bussmann (VA) Category:Inductors, Coils, Chokes D/C:09+

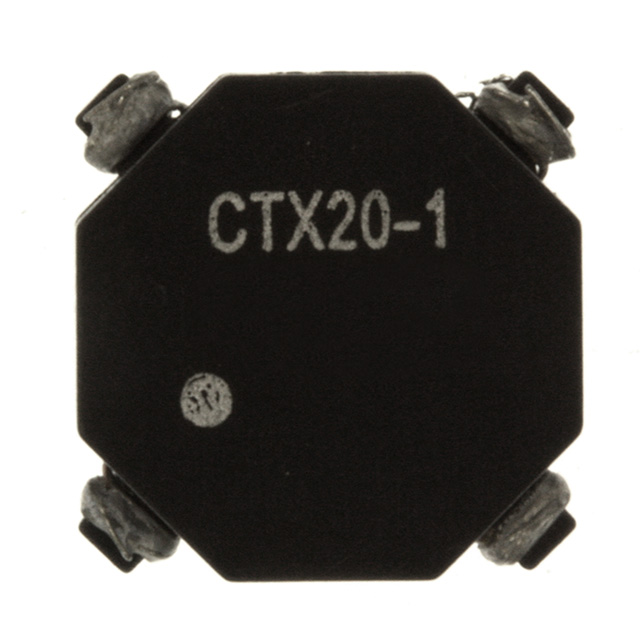

CTX20-1-R, CTX20-2, CTX20-2P-R Datasheet download
Category: Inductors, Coils, Chokes
MFG: Coiltronics/Div of Cooper/Bussmann (VA)
Package Cooled:
D/C: 09+
Description: INDUCTOR TOROID DUAL 19.58UH SMD
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: CTX20-1
File Size: 203062 KB
Manufacturer: MICROSEMI [Microsemi Corporation]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: CTX20-1
File Size: 203062 KB
Manufacturer: MICROSEMI [Microsemi Corporation]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: CTX20-1
File Size: 203062 KB
Manufacturer: MICROSEMI [Microsemi Corporation]
Download : Click here to Download
| Technical/Catalog Information | CTX20-1-R |
| Vendor | Coiltronics/Div of Cooper/Bussmann (VA) |
| Category | Inductors, Coils, Chokes |
| DC Resistance (DCR) | 291.5 mOhm Max |
| Current | 500mA |
| Number of Coils | 2 |
| Mounting Type | Surface Mount |
| Package / Case | 0.450" L x 0.450" W x 0.164" H (11.43mm x 11.43mm x 4.19mm) |
| Tolerance | ±20% |
| Packaging | Digi-Reel? |
| Inductance Per Coil | 23.075H |
| Inductance - Parallel | 19.6H |
| Inductance - Series | 78.4H |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | CTX20 1 R CTX201R 513 1203 6 ND 51312036ND 513-1203-6 |
| Technical/Catalog Information | CTX20-2 |
| Vendor | Coiltronics/Div of Cooper/Bussmann |
| Category | Inductors, Coils, Chokes |
| DC Resistance (DCR) | 213.0 mOhm Max |
| Current | 650mA |
| Number of Coils | 2 |
| Mounting Type | Surface Mount |
| Package / Case | 0.450" L x 0.450" W x 0.235" H (11.43mm x 11.43mm x 5.97mm) |
| Tolerance | ±20% |
| Packaging | Tape & Reel (TR) |
| Inductance Per Coil | 24.73H |
| Inductance - Parallel | 20.73H |
| Inductance - Series | 82.91H |
| Lead Free Status | Contains Lead |
| RoHS Status | RoHS Non-Compliant |
| Other Names | CTX20 2 CTX202 513 1009 2 ND 51310092ND 513-1009-2 |
| Technical/Catalog Information | CTX20-2P-R |
| Vendor | Coiltronics/Div of Cooper/Bussmann (VA) |
| Category | Inductors, Coils, Chokes |
| DC Resistance (DCR) | 193.5 mOhm Max |
| Current | 750mA |
| Number of Coils | 2 |
| Mounting Type | Surface Mount |
| Package / Case | 0.450" L x 0.450" W x 0.235" H (11.43mm x 11.43mm x 5.97mm) |
| Tolerance | ±20% |
| Packaging | Digi-Reel? |
| Inductance Per Coil | 26.74H |
| Inductance - Parallel | 19.58H |
| Inductance - Series | 78.34H |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | CTX20 2P R CTX202PR 513 1029 6 ND 51310296ND 513-1029-6 |
