CTX10-1P, CTX10-2P, CTX10-2P-R

Table of contents:
Info of CTX10-1P
Info of CTX10-2P
Info of CTX10-2P-R

CTX10-1P, CTX10-2P, CTX10-2P-R Selling Leads, Datasheet

MFG:Coiltronics/Div of Cooper/Bussmann Category:Inductors, Coils, Chokes Package Cooled:Standard D/C:10CH04

CTX10-1P, CTX10-2P, CTX10-2P-R Datasheet download

Five Points

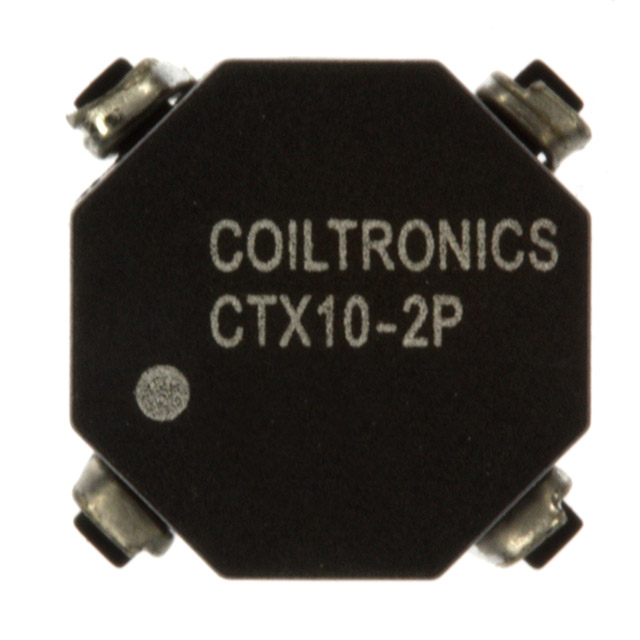

Part Number: CTX10-2P-R

Category: Inductors, Coils, Chokes

MFG: Coiltronics/Div of Cooper/Bussmann

Package Cooled: Standard

D/C: 10CH04

Description: INDUCTOR TOROID DUAL 9.83UH SMD

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

CTX10-2P Parameters

Technical/Catalog Information	CTX10-2P
Vendor	Coiltronics/Div of Cooper/Bussmann (VA)
Category	Inductors, Coils, Chokes
DC Resistance (DCR)	89.50 mOhm Max
Current	1.05A
Number of Coils	2
Mounting Type	Surface Mount
Package / Case	0.450" L x 0.450" W x 0.235" H (11.43mm x 11.43mm x 5.97mm)
Tolerance	±20%
Packaging	Cut Tape (CT)
Inductance Per Coil	13.46H
Inductance - Parallel	9.83H
Inductance - Series	39.3H
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	CTX10 2P CTX102P 513 1027 1 ND 51310271ND 513-1027-1

CTX10-2P-R Parameters

Technical/Catalog Information	CTX10-2P-R
Vendor	Coiltronics/Div of Cooper/Bussmann
Category	Inductors, Coils, Chokes
DC Resistance (DCR)	89.50 mOhm Max
Current	1.05A
Number of Coils	2
Mounting Type	Surface Mount
Package / Case	0.450" L x 0.450" W x 0.235" H (11.43mm x 11.43mm x 5.97mm)
Tolerance	±20%
Packaging	Tape & Reel (TR)
Inductance Per Coil	13.46H
Inductance - Parallel	9.83H
Inductance - Series	39.3H
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	CTX10 2P R CTX102PR 513 1199 2 ND 51311992ND 513-1199-2
