MFG:ON Semiconductor Category:Integrated Circuits (ICs) Package Cooled:SOT-263 D/C:09+ ROHS
CS8221YDPR3, CS8225, CS8240 Datasheet download
Category: Integrated Circuits (ICs)
MFG: ON Semiconductor
Package Cooled: SOT-263
D/C: 09+ ROHS

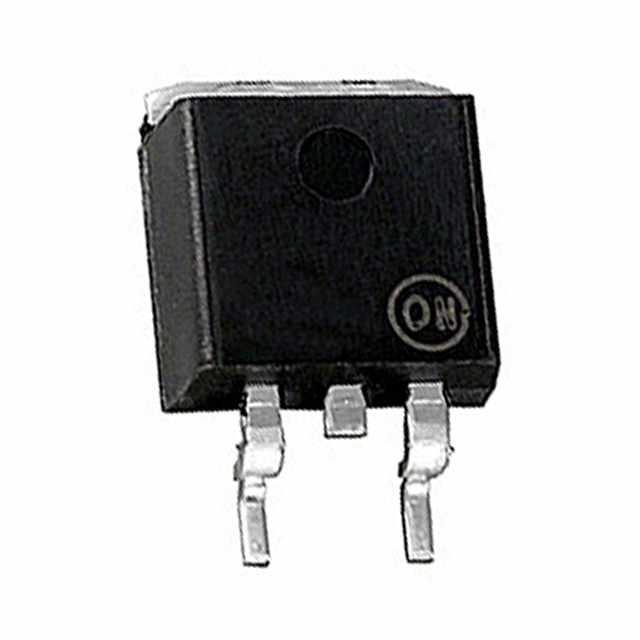

Description: IC REG LDO 100MA 5V MPWR D2PAK-3
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: CS8221YDPR3
File Size: 153245 KB
Manufacturer: CHERRY [Cherry Semiconductor Corporation]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: CS800-12IO1
File Size: 26382 KB
Manufacturer: IXYS [IXYS Corporation]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: CS8240
File Size: 66392 KB
Manufacturer:
Download : Click here to Download
| Technical/Catalog Information | CS8221YDPR3 |
| Vendor | ON Semiconductor |
| Category | Integrated Circuits (ICs) |
| Regulator Type | Single Output |
| Package / Case | D²Pak, SMD-220, TO-263 (3 leads + tab) |
| Packaging | Tape & Reel (TR) |
| Regulator Topology | Positive Fixed |
| Current - Output | 100mA |
| Voltage - Output | 5V |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Input | 6 ~ 26 V |
| Number of Regulators | 1 |
| Current - Limit (Min) | 125mA |
| Current Short Circuit (Isc) | 40A |
| Lead Free Status | Contains Lead |
| RoHS Status | RoHS Non-Compliant |
| Other Names | CS8221YDPR3 CS8221YDPR3 CS8221YDPR3OS ND CS8221YDPR3OSND CS8221YDPR3OS |
The CS8240 is a fast, PNP high side driver capable of delivering up to 500 mA into a resistive or inductive load in harsh automotive or industrial environments. An internal flyback diode clamp is incorporated for inductive loads. The input (VIN) is TTL and CMOS compatible and has hysteresis to minimize the effects of noise. When the input is high, the output is on. When the input is low, the output is off and the supply voltage quiescent current is very low (< 1.0 mA, typ). For device protection, the CS8240 incorporates thermal shutdown,short circuit current limiting, overvoltage shutdown, and reverse battery protection. The CS8240 can withstand supply voltage transients of 60 V (min) and 50 V.
The CS8240 is available in an overmolded 5 lead TO220 package and is a competitive replacement for the LM1921, LM1951,LM1952, MC3399, and L9350.
|
Rating |
Value |
Unit |
| Supply Voltage |
6.0 to 26 |
°C |
| Overvoltage Protection |
60 |
V |
| Reverse Voltage: DC Transient |
16 50 |
V |
| Internal Power Dissipation |
Internally limited |
V |
| Logic Input Voltage |
0.3 to +7.0 |
V |
| Junction Temperature Range, TJ |
40 to15 |
°C |
| Storage Temperature Range, TS |
55 to +165 |
°C |
| Electrostatic Discharge (Human Body Model) |
2.0 |
KV |
| Lead Temperature Soldering: Wave Solder (through hole styles only) (Note 1) |
260 peak |
°C |
