CR200, CR20104R75, CR2016

Table of contents:
Info of CR200
Info of CR20104R75
Info of CR2016

CR200, CR20104R75, CR2016 Selling Leads, Datasheet

MFG:Sanyo Energy Category:Batteries Package Cooled:N/A D/C:1200

CR200, CR20104R75, CR2016 Datasheet download

Five Points

Part Number: CR2016

Category: Batteries

MFG: Sanyo Energy

Package Cooled: N/A

D/C: 1200

Description: BATT LITH COIN 3V 20MM

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

CR200 General Description

The CR160 series is a family of ±10% range current regulators designed for demanding applications in test equipment and instrumentation. These devices combine a JFET with an integrated resistor to produce a single two-leaded device which is extremely simple to operate. With nominal current ranges from 1.60 mA to 4.70 mA,

this series will meet a wide array of design requirements.

The TO-206AA hermetically sealed package is available with military processing per MIL-S-19500 (see Military Information).

CR200 Maximum Ratings

Peak Operating Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100 V
Reverse Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 mA
Thermal Resistance (_JA) . . . . . . . . . . . . . . . . . . . ... . . . . . . . 417/W
Storage Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . 55 to 200
Power Dissipation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 300 mW
Notes: NKO
a. Derate 2.4 mW/ above 25

CR200 Features

·Two-Lead Hermetic Package
·Guaranteed Tight±10% Tolerance
·Operation from 1 V (CR160) to 100 V
·Excellent Temperature Stability

CR200 Typical Application

· Constant-Current Supply
· Current-Limiting
· Timing Circuits

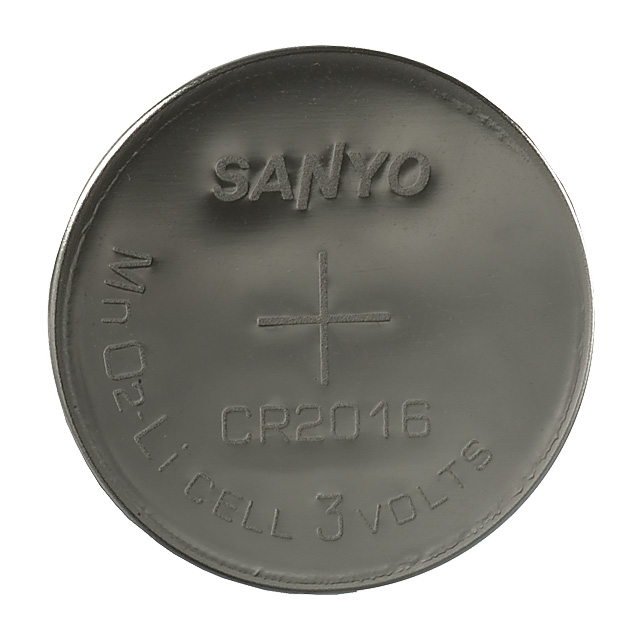

CR2016 Parameters

Technical/Catalog Information	CR2016
Vendor	Sanyo Energy
Category	Batteries
Battery Cell Size	Coin 20mm
Voltage - Rated	3V
Capacity	80mAh
Shipping Info	Due to possible restrictions, a change in ship method may be required.
Rechargeability	No
Termination Style	Requires Holder
Size / Dimension	0.79" Dia x 0.06" H (20.0mm x 1.5mm)
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant by Exemption
Other Names	CR2016 CR2016 SY138 ND SY138ND SY138
