MFG:Cirrus Logic Inc Category:Programmers, Development Systems Package Cooled:SOP D/C:08+/09+
CDB451D, CDB5381, CDB7620-000 Datasheet download
Category: Programmers, Development Systems
MFG: Cirrus Logic Inc
Package Cooled: SOP
D/C: 08+/09+

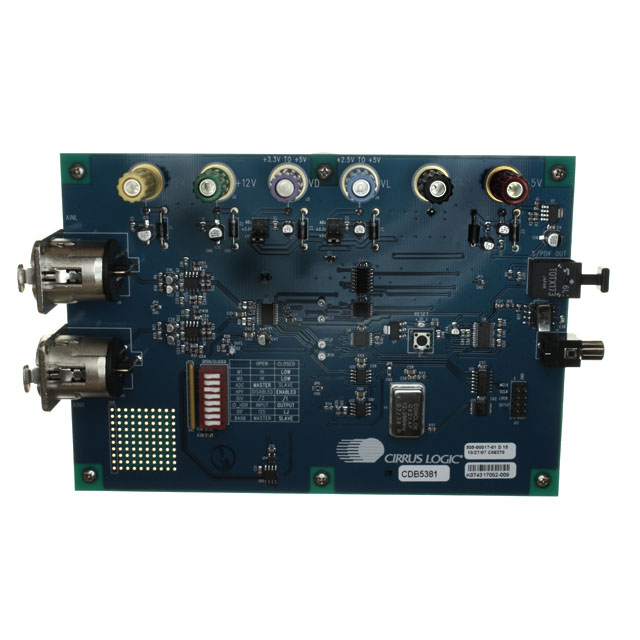

Description: BOARD EVAL FOR CS5381 192KHZ ADC
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: CDB-15PF
File Size: 279376 KB
Manufacturer: HIROSE [Hirose Electric]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: CDB5381
File Size: 299796 KB
Manufacturer: CIRRUS [Cirrus Logic]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: CDB7620-000
File Size: 312730 KB
Manufacturer: ALPHA [Alpha Industries]
Download : Click here to Download
| Technical/Catalog Information | CDB5381 |
| Vendor | Cirrus Logic Inc |
| Category | Programmers, Development Systems |
| Number of ADC's | 2 |
| Inputs per ADC | 1 Differential |
| Input Range | 6.1 Vpp |
| Data Interface | Serial |
| Number of Bits | 24 |
| Sampling Rate (Per Second) | 192k |
| Voltage Supply Source | Analog and Digital |
| Operating Temperature | -10°C ~ 70°C |
| Supplied Contents | Board, CD |
| Utilized IC / Part | CS5381 |
| Power (Typ) @ Conditions | 360mW @ 5 V |
| Lead Free Status | Contains Lead |
| RoHS Status | RoHS Non-Compliant |
| Other Names | CDB5381 CDB5381 598 1008 ND 5981008ND 598-1008 |
Alpha's product line of silicon Schottky diode chips are intended for use as detector and mixer devices in hybrid integrated circuits at frequencies from below 100 MHz to higher than 40 GHz. Alpha's "Universal Chip" design features a 4 mil diameter bond pad that is offset from the semiconductor junction preventing damage to the active junction as a result of wire bonding.
As power-sensing detectors, these Schottky diode chips all have the same voltage sensitivity so long as the outpu video impedance is much higher than the video resistance of the diode. Figure 1 shows the expected detected voltage sensitivity as a function of RF source impedance in an untuned circuit. Note that sensitivity is substantially increased by transforming the source impedance from 50 Ω to higher values. Maximum sensitivity occurs when the source impedance equals the video resistance.
In a detector circuit operating at zero bias, depending on the video load impedance, a ZBD device with RV less than 10 kΩ may be more sensitive than a low barrier diode with RV greater than 100 kΩ. Applying forward bias reduces the diode video resistance as shown in Figure 2. Lower video resistance also increases the video bandwidth but does not increase voltage sensitivity, as shown in Figure 3. Biased Schottky diodes have better temperature stability and also may be used in temperature compensated detector circuits. P-type Schottky diodes generate lower 1/F noise and are preferred for Doppler mixers and biased detector applications.The bond pad for the P-type Schottky diode is the cathode.N-type Schottky diodes have lower parasitic resistance, RS, and will perform with lower conversion loss in mixer circuits. The bond pad for the N-type Schottky diode is the anode.
