MFG:Texas Instruments Category:Integrated Circuits (ICs) Package Cooled:DIP D/C:8239+

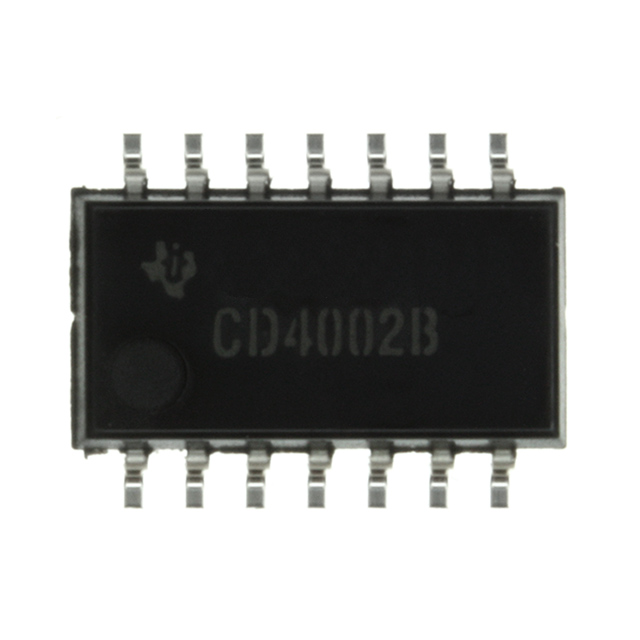

CD4002BNSR, CD4002BPC, CD4002BPW Datasheet download
Category: Integrated Circuits (ICs)
MFG: Texas Instruments
Package Cooled: DIP
D/C: 8239+
Description: IC DUAL 4IN NOR GATE 14-TSSOP
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: CD4002BNSR
File Size: 536256 KB
Manufacturer: TI [Texas Instruments]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: CD4/74AC563
File Size: 245957 KB
Manufacturer:
Download : Click here to Download
PDF/DataSheet Download
Datasheet: CD4002BPW
File Size: 536256 KB
Manufacturer: TI [Texas Instruments]
Download : Click here to Download
| Technical/Catalog Information | CD4002BNSR |
| Vendor | Texas Instruments (VA) |
| Category | Integrated Circuits (ICs) |
| Number of Circuits | 2 - Dual |
| Package / Case | 14-SOIC (5.3mm Width), 14-SOP, 14-SOIJ |
| Logic Type | NOR Gate |
| Packaging | Cut Tape (CT) |
| Mounting Type | Surface Mount |
| Number of Inputs | 4 |
| Current - Output High, Low | 67mA, 160mA |
| Supply Voltage | 3 V ~ 18 V |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply | 3 V ~ 18 V |
| Drawing Number | 296; 4040062; NS; 14, 16, 20, 24 |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | CD4002BNSR CD4002BNSR 296 14078 1 ND 296140781ND 296-14078-1 |
| Technical/Catalog Information | CD4002BPW |
| Vendor | Texas Instruments |
| Category | Integrated Circuits (ICs) |
| Number of Circuits | 2 - Dual |
| Package / Case | 14-TSSOP |
| Logic Type | NOR Gate |
| Packaging | Tube |
| Mounting Type | Surface Mount |
| Number of Inputs | 4 |
| Current - Output High, Low | 67mA, 160mA |
| Supply Voltage | 3 V ~ 18 V |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply | 3 V ~ 18 V |
| Drawing Number | 296; 4040064; PW; 8, 14, 16, 20, 24, 28 |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | CD4002BPW CD4002BPW |
