BY359-1500, BY359-1500S, BY359DX-1500

BY359-1500, BY359-1500S, BY359DX-1500 Selling Leads, Datasheet

MFG:NXP Semiconductors  Category:Discrete Semiconductor Products  Package Cooled:PH  D/C:96+

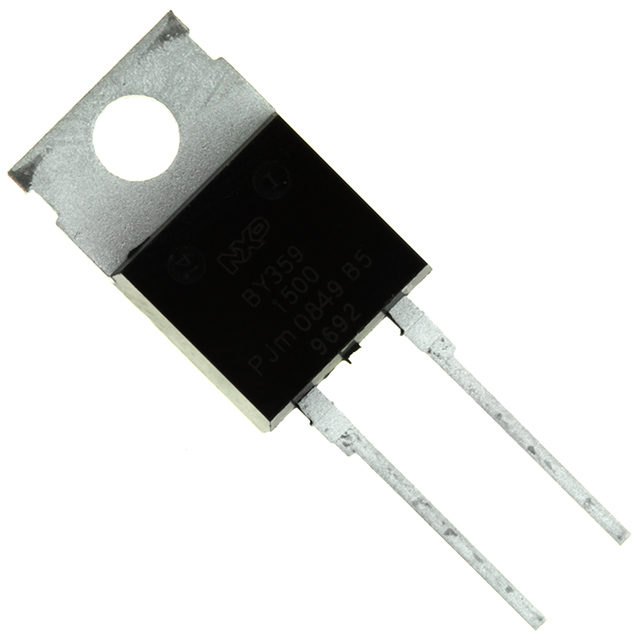

BY359-1500 Picture

BY359-1500, BY359-1500S, BY359DX-1500 Datasheet download

Five Points

Part Number: BY359-1500

Category: Discrete Semiconductor Products

MFG: NXP Semiconductors

Package Cooled: PH

D/C: 96+

Description: DIODE RECT 1200V 6A SOD59
