B3F-1155, B3F-1170, B3F-3100

Table of contents:
Info of B3F-1155
Info of B3F-1170
Info of B3F-3100

B3F-1155, B3F-1170, B3F-3100 Selling Leads, Datasheet

MFG:Omron Electronics Inc-ECB Div Category:Switches Package Cooled:Original Package D/C:08+/09+

B3F-1155, B3F-1170, B3F-3100 Datasheet download

Five Points

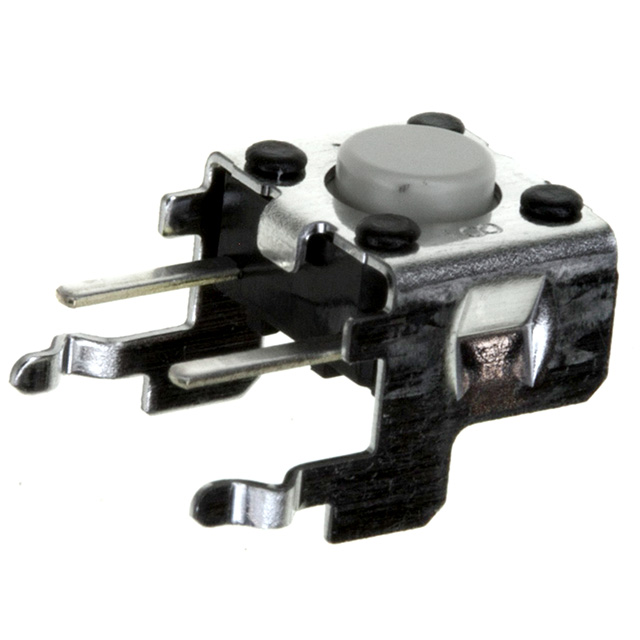

Part Number: B3F-3100

Category: Switches

MFG: Omron Electronics Inc-ECB Div

Package Cooled: Original Package

D/C: 08+/09+

Description: SWITCH TACT 6MM 100GF H=3.15MM

Price Break

100

Unit Price

.36520

Extended Price

36.52

(All prices are in USD) Prices for reference only

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

B3F-1155 Parameters

Technical/Catalog Information	B3F-1155
Vendor	Omron Electronics Inc-ECB Div
Category	Switches
Actuator Type	Plunger for Cap
Circuit	SPST-NO
Contact Rating @ Voltage	0.05A @ 24VDC
Mounting Type	Through Hole
Operating Force	260gf
Orientation	Vertical
Outline	6.00mm x 6.00mm
Switch Function	Off-Mom
Illumination	Non-Illuminated
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	B3F 1155 B3F1155

B3F-1170 Parameters

Technical/Catalog Information	B3F-1170
Vendor	Omron Electronics Inc-ECB Div
Category	Switches
Actuator Type	Standard
Circuit	SPST-NO
Contact Rating @ Voltage	0.05A @ 24VDC
Mounting Type	Through Hole
Operating Force	100gf
Orientation	Vertical
Outline	6.00mm x 6.00mm
Switch Function	Off-Mom
Illumination	Non-Illuminated
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	B3F 1170 B3F1170

B3F-3100 Parameters

Technical/Catalog Information	B3F-3100
Vendor	Omron Electronics Inc-ECB Div
Category	Switches
Actuator Type	Standard
Circuit	SPST-NO
Contact Rating @ Voltage	0.05A @ 24VDC
Mounting Type	Through Hole
Operating Force	100gf
Orientation	Right Angle
Outline	7.40mm x 7.30mm
Switch Function	Off-Mom
Illumination	Non-Illuminated
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	B3F 3100 B3F3100 SW1049 ND SW1049ND SW1049
