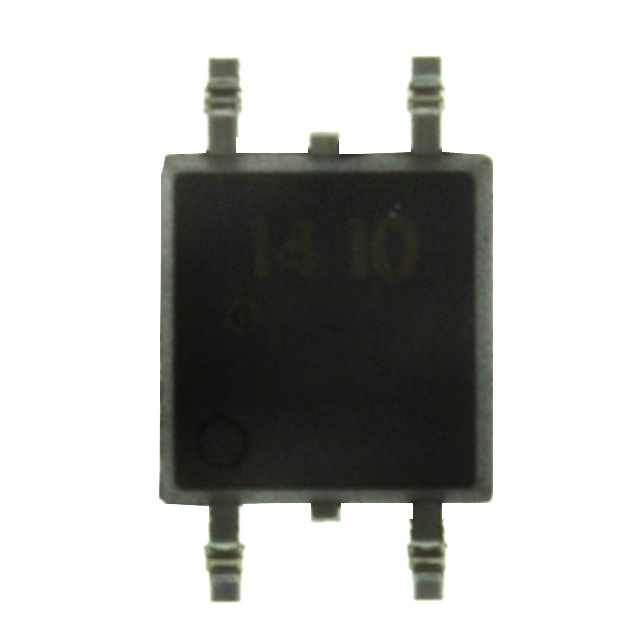

Part Number: ASSR-1410-003E

Category: Relays

MFG: Avago Technologies US Inc.

Package Cooled: SOP

D/C: 07+PB

Description: RELAY GP SSR SPST 0.6A 60V SO-4

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

ASSR-1410-003E Parameters

Technical/Catalog Information	ASSR-1410-003E
Vendor	Avago Technologies US Inc.
Category	Relays
Mounting Type	Surface Mount
Termination Style	Gull Wing
Package / Case	4-SOP
Circuit	SPST-NO (1 Form A)
Load Current	600mA
Voltage - Input	1.3VDC
Voltage - Load	0 ~ 60 V
Output Type	AC, DC
On-State Resistance	1 Ohm
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	ASSR 1410 003E ASSR1410003E 516 2006 ND 5162006ND 516-2006

ASSR-1410-003E General Description

The ASSR-14XX Solid State Relay (SSR) series consist of an AlGaAs infrared light-emitting diode (LED) input stage optically coupled to a high-voltage output detector circuit. The detector consists of a high-speed photovoltaic diode array and driver circuitry to switch on/off two discrete high voltage MOSFETs.

The relay turns on (contact closes) with a minimum input current of 3mA through the input LED. The relay turns off (contact opens) with an input voltage of 0.8V or less.

The single channel configurations, ASSR-1410 and ASSR-1411, are equivalent to 1 Form A Electromechanical Relays (EMR), and the dual channel configuration, ASSR-1420, is equivalent to 2 Form A EMR. They are available in 4-pin SO, 6-pin DIP, 8-pin DIP and Gull Wing Surface Mount for DIP packages. Their electrical and switching characteristics are specified over the temperature range of -40°C to 85°C. They are used for general purpose switching of signals and low power AC/DC loads.

ASSR-1411 enables AC/DC and DC-only output connections. For DC-only connection, the output current, Io, increases to 1.2A and the on-resistance, R(ON) reduces 0.5Ω.

ASSR-1410-003E Maximum Ratings

Miniature size, ideal for space constrained applications
Complete package of encoder module with codewheel offer highly competitive price range
No Signal Adjustment Required
Extremely tolerant to mounting misalignment
Easy to mount
