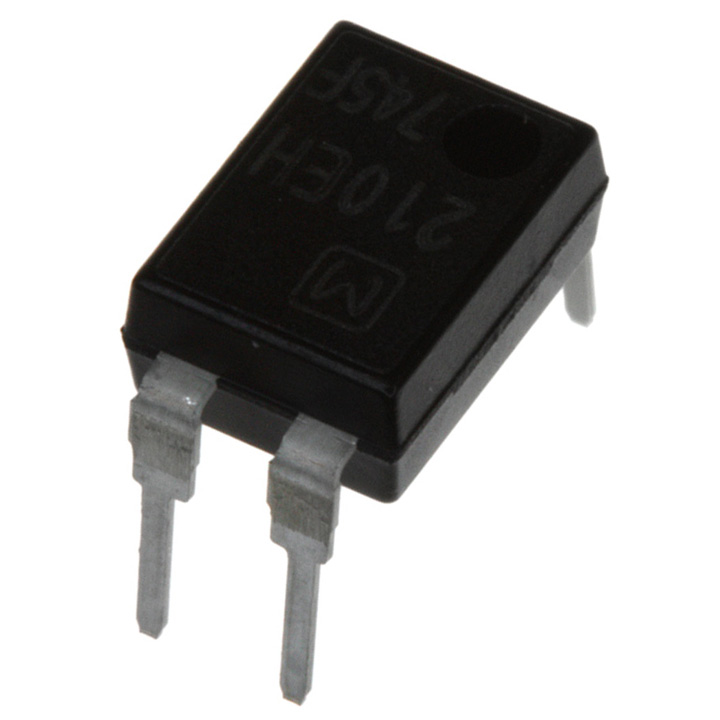

Part Number: AQY210EH

Category: Relays

MFG: Panasonic Electric Works

Package Cooled: 500

D/C: 99

Description: RELAY OPTO SPST-NO 130MA 4-DIP

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

AQX21444 Suppliers

More AQX21444 Suppliers

About AQX21444

PDF/DataSheet Download

Datasheet: AQX21444

File Size: 54999 KB

Manufacturer: NAIS [Nais(Matsushita Electric Works)]

Download : Click here to Download

Related PDF Download

Related Part Number

AQX21444 Panasonic Electric Works - 500 - 99
NX8564LE878-BC NEC - N/A - 09+
SA8547TS PHILIPS - TSSOP-20 - 01+
LH1010 HAR - CAN - 05+
06031A1R0CAT2A AVX Corporation - 0603+ - 09+
SA647C PHILIPS - 09+ - 09+
ELLA160ELL103MM40S NIPPON CHEMI-CON - DIP - 09+
S-80945CNMC-G9F SEK - SOT25/SOT353 - 09+
PC82562V 877092 INTEL - SMD/DIP - 2009
D65958 N/A - BGA金脚 - N/A
TLV320AIC24CPFBR Texas Instruments - 2008+ROHS - 09+
MC100ELT22D
HD14532D
HMBD2004
HMBT5401
HMBTA56
HMBD914
HMBTA94
HMBT8550
HMBT2369
HMBD2003

AQY210EH Parameters

Technical/Catalog Information	AQY210EH
Vendor	Panasonic Electric Works
Category	Relays
Mounting Type	Through Hole
Termination Style	PC Pin
Package / Case	4-DIP
Circuit	SPST-NO (1 Form A)
Load Current	130mA
Voltage - Input	1.25VDC
Voltage - Load	0 ~ 350 V
Output Type	AC, DC
On-State Resistance	25 Ohm
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	AQY210EH AQY210EH 255 1430 5 ND 25514305ND 255-1430-5

AQY210EH Maximum Ratings

Item		Symbol	AQY210EH (A)	AQY214EH (A)	Remarks
Input	LED forward current	I_F	50 mA
	LED reverse voltage	V_R	3 V
	Peak forward current	I_FP	1 A		f = 100 Hz, Duty factor = 0.1%
	Power dissipation	P_in	75 mW
Output	Load voltage (peak AC)	V_L	350 V	400 V	Effective Vrms
	Continuous load current	I_L	0.13 A	0.12 A
	Peak load current	I_peak	0.4 A	0.3 A	100 ms (1 shot), V_L = DC
	Power dissipation	P_out	500mW
Total power dissipation		P_T	550mW
I/O isolation voltage		V_iso	5,000 V AC
Temperature limits	Operating	T_opr	40°C to +85°C		Non-condensing at low temperatures
Temperature limits	Storage	T_stg	40°C to +100°C

AQY210EH Features

1. Reinforced insulation 5,000 V type
More than 0.4 mm internal insulation distance between inputs and outputs. Conforms to EN41003, EN60950 (reinforced insulation).
2. Compact 4-pin DIP size
The device comes in a compact (W)6.4*(L)4.78*(H)3.2mm (W).252*(L).188*(H).126inch, 4-pin DIP size.
3. Controls low-level analog signals
PhotoMOS relays feature extremely low closed-circuit offset voltage to enable control of low-level analog signals without distortion.
4. High sensitivity, low ON resistance
Can control a maximum 0.13 A load current with a 5 mA input current. Low ON resistance of 25 (AQY210EH). Stable operation because there are no metallic contact parts.
5. Low-level off state leakage current
The SSR has an off state leakage current of several milliamperes, whereas the PhotoMOS relay has only 100 pA even with the rated load voltage of 350 V (AQY210EH).

AQY210EH Typical Application

• Modem
• Telephone equipment
• Security equipment
• Sensors
