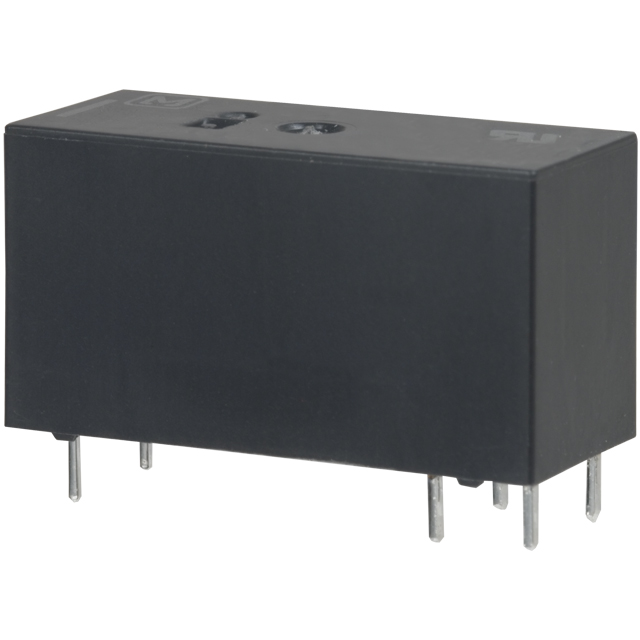

MFG:Panasonic Electric Works Category:Relays Package Cooled:N/A D/C:2010+
ALZ21B24, ALZ21B24W, ALZ21BO5 Datasheet download
Category: Relays
MFG: Panasonic Electric Works
Package Cooled: N/A
D/C: 2010+
Description: RELAY POWER 16A 24VDC FLUX-RES
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: ALZ22F48
File Size: 70397 KB
Manufacturer: Nais(Matsushita Electric Works)
Download : Click here to Download
PDF/DataSheet Download
Datasheet: ALZ22F48
File Size: 70397 KB
Manufacturer: Nais(Matsushita Electric Works)
Download : Click here to Download
PDF/DataSheet Download
Datasheet: ALZ22F48
File Size: 70397 KB
Manufacturer: Nais(Matsushita Electric Works)
Download : Click here to Download
| Technical/Catalog Information | ALZ21B24 |
| Vendor | Panasonic Electric Works |
| Category | Relays |
| Relay Type | General Purpose |
| Mounting Type | Through Hole |
| Termination Style | PC Pin |
| Circuit | SPST-NO (1 Form A) |
| Contact Rating @ Voltage | 16A @ 250VAC |
| Coil Voltage | 24VDC |
| Control Off Voltage (Min) | 2.4 VDC |
| Control On Voltage (Max) | 16.8 VDC |
| Coil Current | 16.7mA |
| Coil Type | Standard |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | ALZ21B24 ALZ21B24 255 1411 ND 2551411ND 255-1411 |
1. Low profile size: Height 15.7 mm
28.8 (L)×12.5 (W)×15.7(H) mm 1.134(L)×.492 (W)×.618(H) inch
2. High insulation resistance Creepage distance and clearances between contact and coil: Min. 10 mm
3. UL coil insulation class B (85°C 185°F) or class F (105°C 221°F).
4. Pb free and Cd free
5. Low operating power
• Nominal operating power: 400mW
6. Conforms to the various safety standards:
• UL/CSA, VDE approved.
| Technical/Catalog Information | ALZ21B24W |
| Vendor | Panasonic Electric Works |
| Category | Relays |
| Relay Type | General Purpose |
| Mounting Type | Through Hole |
| Termination Style | PC Pin |
| Circuit | SPST-NO (1 Form A) |
| Contact Rating @ Voltage | 16A @ 250VAC |
| Coil Voltage | 24VDC |
| Control Off Voltage (Min) | 2.4 VDC |
| Control On Voltage (Max) | 16.8 VDC |
| Coil Current | 16.7mA |
| Coil Type | Standard |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | ALZ21B24W ALZ21B24W |
