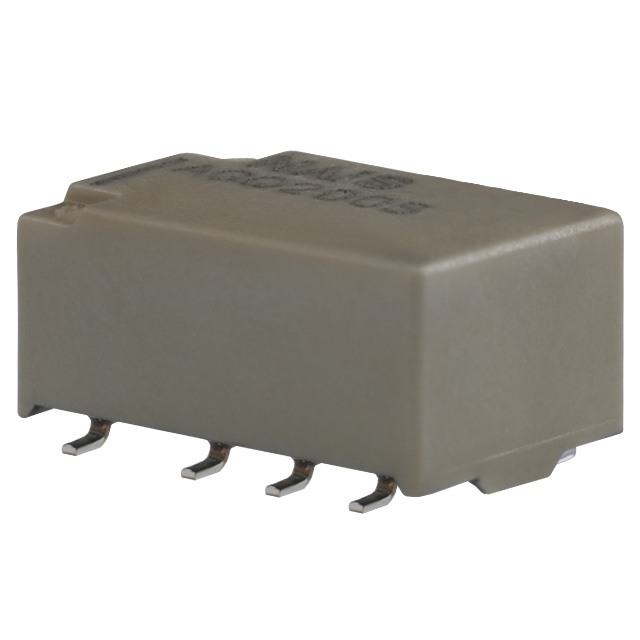

AGQ200S12Z, AGQ200S1H, AGQ200S24

Table of contents:
Info of AGQ200S12Z
Info of AGQ200S1H
Info of AGQ200S24

AGQ200S12Z, AGQ200S1H, AGQ200S24 Selling Leads, Datasheet

MFG:Panasonic Electric Works Category:Relays Package Cooled:SMD D/C:04+

AGQ200S12Z, AGQ200S1H, AGQ200S24 Datasheet download

Five Points

Part Number: AGQ200S12Z

Category: Relays

MFG: Panasonic Electric Works

Package Cooled: SMD

D/C: 04+

Description: RELAY PWR DPDT 1A 24VDC SMD

Price Break

900

Unit Price

2.46000

Extended Price

2214.00

(All prices are in USD) Prices for reference only

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

AGQ200S12Z Parameters

Technical/Catalog Information	AGQ200S12Z
Vendor	Panasonic Electric Works
Category	Relays
Relay Type	Telecom
Mounting Type	Surface Mount
Termination Style	Gull Wing
Circuit	DPDT (2 Form C)
Contact Rating @ Voltage	1A @ 30VDC
Coil Voltage	12VDC
Control Off Voltage (Min)	1.2 VDC
Control On Voltage (Max)	9 VDC
Coil Current	11.7mA
Coil Type	Standard
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	AGQ200S12Z AGQ200S12Z

AGQ200S1H Parameters

Technical/Catalog Information	AGQ200S1H
Vendor	Panasonic Electric Works
Category	Relays
Relay Type	Telecom
Mounting Type	Surface Mount
Termination Style	Gull Wing
Circuit	DPDT (2 Form C)
Contact Rating @ Voltage	1A @ 30VDC
Coil Voltage	1.5VDC
Control Off Voltage (Min)	0.15 VDC
Control On Voltage (Max)	1.13 VDC
Coil Current	93.8mA
Coil Type	Standard
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	AGQ200S1H AGQ200S1H 255 1360 5 ND 25513605ND 255-1360-5

AGQ200S24 Parameters

Technical/Catalog Information	AGQ200S24
Vendor	Panasonic Electric Works
Category	Relays
Relay Type	Telecom
Mounting Type	Surface Mount
Termination Style	Gull Wing
Circuit	DPDT (2 Form C)
Contact Rating @ Voltage	1A @ 30VDC
Coil Voltage	24VDC
Control Off Voltage (Min)	2.4 VDC
Control On Voltage (Max)	18 VDC
Coil Current	9.6mA
Coil Type	Standard
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	AGQ200S24 AGQ200S24 255 1364 5 ND 25513645ND 255-1364-5
