The ADCMP551/ADCMP552/ADCMP553 are single supply, high speed comparators fabricated on Analog Devices proprietary XFCB process. The devices feature a 750 ps propagation delay with less than 150 ps overdrive dispersion. Dispersion, a measure of the difference in propagation delay under differing overdrive conditions, is a particularly important haracteristic of high speed comparators. A separate programmable hysteresis pin is available on the ADCMP552.
A differential input stage permits consistent propagation delay with a common-mode range from 0.2 V to VCCI 2.0 V. Outputs are complementary digital signals are fully compatible with PECL 10 K and 10 KH logic families. The outputs provide sufficient drive current to directly drive transmission lines terminated in 50 Ω to VCCO − 2 V. A latch input is included and permits tracking, track-and-hold, or sample-and-hold modes of operation. The latch input pins contain internal pull ups that set the latch in tracking mode when left open.

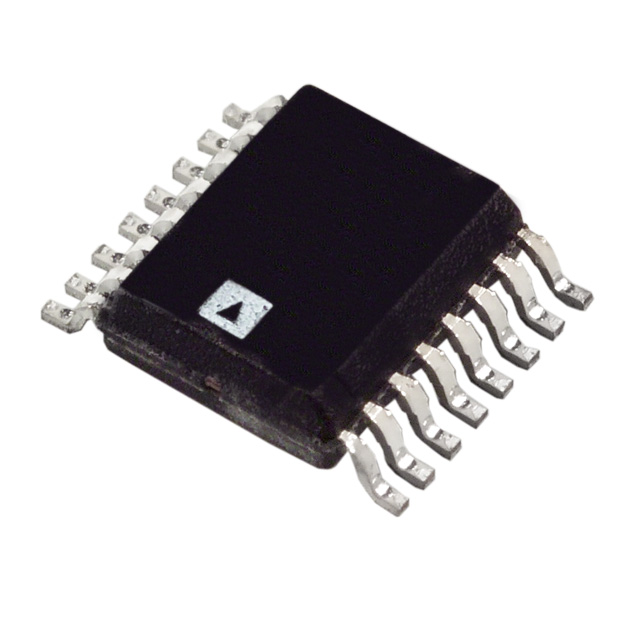

The ADCMP551/ADCMP552/ADCMP553 are specified over the 40°C to +85°C industrial temperature range. The ADCMP551 is available in a 16-lead QSOP package; the ADCMP552 is available in a 20-lead QSOP package; and the ADCMP553 is available in an 8-lead MSOP package.
ADCMP551 Maximum Ratings
Parameter
Rating
SUPPLY VOLTAGES Input Supply Voltage (VCCI to GND) Output Supply Voltage (VCCO to GND) Positive Supply Differential
−0.5 V to +6.0 V −0.5 V to +6.0 V
−0.5 V to +3.5 V
INPUT VOLTAGES Input Voltage Differential Input Voltage Input Voltage, Latch Enable
−0.5 V to +3.5 V −4.0 V to +4.0 V −0.5 V to +5.5 V
OUTPUT CURRENT Output Current
30 mA
TEMPERATURE Operating Temperature, Ambient Operating Temperature, Junction Storage Temperature Range
−40°C to +85°C 125°C −65°C to +150°C
ADCMP551 Features
*Single power supply *750 ps propagation delay input to output *100 ps propagation delay dispersion *Differential PECL compatible outputs *Differential latch control *Internal latch pull-up resistors *Power supply rejection greater than 70 dB *750 ps minimum pulse width *Equivalent input rise time bandwidth > 750 MHz *Typical output rise/fall of 500 ps *Programmable Hysteresis
ADCMP551 Typical Application
Automatic test equipment High speed instrumentation Scope and logic analyzer front ends Window comparators High speed line receivers Threshold detection Peak detection High speed triggers Patient diagnostics Disk drive read channel detection Hand-held test instruments Zero crossing detectors Line receivers and signal restoration Clock drivers
