AD766, AD7660ACPRL, AD7660ACPZ

Table of contents:
Info of AD766
Info of AD7660ACPRL
Info of AD7660ACPZ

AD766, AD7660ACPRL, AD7660ACPZ Selling Leads, Datasheet

MFG:Analog Devices Inc Category:Integrated Circuits (ICs) Package Cooled:N/A D/C:09+

AD766, AD7660ACPRL, AD7660ACPZ Datasheet download

Five Points

Part Number: AD766

Category: Integrated Circuits (ICs)

MFG: Analog Devices Inc

Package Cooled: N/A

D/C: 09+

Description: IC ADC 16BIT UNIPOLAR 48LFCSP

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

AD766 Parameters

AD766 Features

Zero-Chip Interface to Digital Signal Processors
Complete DACPORTx
On-Chip Voltage Reference
Voltage and Current Outputs
Serial, Twos-Complement Input
±3 V Output
Sample Rates to 390 kSPS
94 dB Minimum Signal-to-Noise Ratio

-81 dB Maximum Total Harmonic
Distortion
15-Bit Monotonicity
±5 V to ±12 V Operation
16-Pin Plastic and Ceramic Packages
Available in Comercial, Industrial and
Military Temperature Ranges

AD766 General Description

16-Bit Current-Steering DAC with Voltage Reference

AD766 Maximum Ratings

Resolution (Bits)	16bit
DAC Update Rate	390kSPS
DAC Settling Time	1.5s
# DAC Outputs	1
DAC Type	Voltage Out
DAC Input Format	Ser

Output FSR	(Bip 3V)
Ref Int/Ext	Int
Supply Vnom	Dual(+12, -12),Dual(+5, -5)
Pwr Diss	150mW
Package	DIP

AD766 Features

Zero-Chip Interface to Digital Signal Processors
Complete DACPORTx
On-Chip Voltage Reference
Voltage and Current Outputs
Serial, Twos-Complement Input
±3 V Output
Sample Rates to 390 kSPS
94 dB Minimum Signal-to-Noise Ratio

-81 dB Maximum Total Harmonic
Distortion
15-Bit Monotonicity
±5 V to ±12 V Operation
16-Pin Plastic and Ceramic Packages
Available in Comercial, Industrial and
Military Temperature Ranges

AD766 Typical Application

AD766: 16-Bit Current-Steering DAC, Voltage Reference, Voltage Output Op Amp Data Sheet

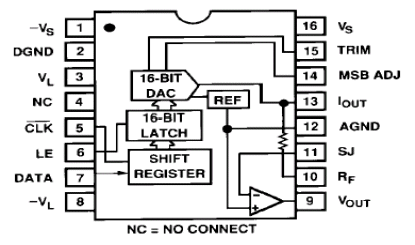

AD766 Connection Diagram

AD7660ACPRL Parameters

Technical/Catalog Information	AD7660ACPRL
Vendor	Analog Devices Inc
Category	Integrated Circuits (ICs)
Number of Bits	16
Package / Case	48-LFCSP
Data Interface	Serial/Parallel
Packaging	Tape & Reel (TR)
Sampling Rate (Per Second)	100k
Operating Temperature	-40°C ~ 85°C
Voltage Supply Source	Analog and Digital
Number of Inputs and Type	2 Pseudo-Differential, Unipolar
Number of Converters	1
Power Dissipation (Max)	25mW
RoHS Status	RoHS Non-Compliant
Other Names	AD7660ACPRL AD7660ACPRL

AD7660ACPZ Parameters

Technical/Catalog Information	AD7660ACPZ
Vendor	Analog Devices Inc
Category	Integrated Circuits (ICs)
Number of Bits	16
Package / Case	48-LFCSP
Data Interface	Serial/Parallel
Packaging	Tray
Sampling Rate (Per Second)	100k
Operating Temperature	-40°C ~ 85°C
Voltage Supply Source	Analog and Digital
Number of Inputs and Type	2 Pseudo-Differential, Unipolar
Number of Converters	1
Power Dissipation (Max)	25mW
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	AD7660ACPZ AD7660ACPZ
