574502B00000G, 574502B03300, 574502B03300G

Table of contents:
Info of 574502B00000G
Info of 574502B03300
Info of 574502B03300G

574502B00000G, 574502B03300, 574502B03300G Selling Leads, Datasheet

MFG:Aavid Thermalloy Category:Fans, Thermal Management D/C:09+

574502B00000G, 574502B03300, 574502B03300G Datasheet download

Five Points

Part Number: 574502B00000G

Category: Fans, Thermal Management

MFG: Aavid Thermalloy

Package Cooled:

D/C: 09+

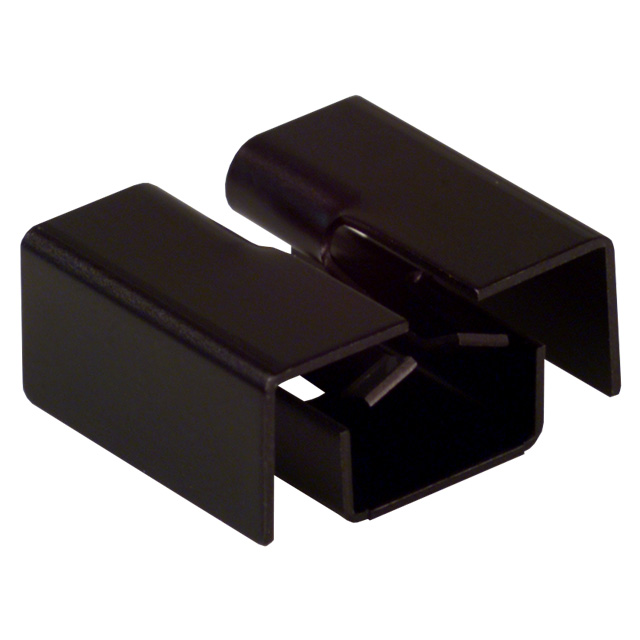

Description: HEATSINK TO-220 VERT MNT W/TAB

Price Break

1
10
100
500
1000
5000

Unit Price

.40000
.28800
.20130
.17250
.16100
.14663

Extended Price

0.40
2.88
20.13
86.25
161.00
733.15

(All prices are in USD) Prices for reference only

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

574502B00000G Parameters

Technical/Catalog Information	574502B00000G
Vendor	Aavid Thermalloy
Category	Fans, Thermal Management
Attachment Method	Bolt On
Height	0.75" (19.05mm)
Material	Aluminum
Package Cooled	TO-220
Power Dissipation @ Temperature Rise	3W @ 60°C
Thermal Resistance @ Forced Air Flow	8.0°C/W @ 400 LFM
Outline	21.84mm x 10.03mm
Thermal Resistance @ Natural	21.2°C/W
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	574502B00000G 574502B00000G HS198 ND HS198ND HS198

574502B03300 Parameters

Technical/Catalog Information	574502B03300
Vendor	Aavid Thermalloy
Category	Thermal Management
Attachment Method	Bolt On and PC Pin
Height	0.75" (19.05mm)
Material	Aluminum
Package Cooled	TO-220
Power Dissipation @ Temperature Rise	3W @ 60°C
Thermal Resistance @ Forced Air Flow	6°C/W @ 600 LFM
Outline	20.57mm x 9.90mm
Thermal Resistance @ Natural	21.2°C/W
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	574502B03300 574502B03300 HS200 ND HS200ND HS200

574502B03300G Parameters

Technical/Catalog Information	574502B03300G
Vendor	Aavid Thermalloy
Category	Fans, Thermal Management
Attachment Method	Bolt On and PC Pin
Height	0.75" (19.05mm)
Material	Aluminum
Package Cooled	TO-220
Power Dissipation @ Temperature Rise	3W @ 60°C
Thermal Resistance @ Forced Air Flow	6°C/W @ 600 LFM
Outline	20.57mm x 9.90mm
Thermal Resistance @ Natural	21.2°C/W
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	574502B03300G 574502B03300G HS357 ND HS357ND HS357
