5600CG, 5600F7, 5600IS2

Table of contents:
Info of 5600CG
Info of 5600F7
Info of 5600IS2

5600CG, 5600F7, 5600IS2 Selling Leads, Datasheet

MFG:CML Innovative Technologies Inc Category:Optoelectronics Package Cooled:09+ D/C:1000

5600CG, 5600F7, 5600IS2 Datasheet download

Five Points

Part Number: 5600F7

Category: Optoelectronics

MFG: CML Innovative Technologies Inc

Package Cooled: 09+

D/C: 1000

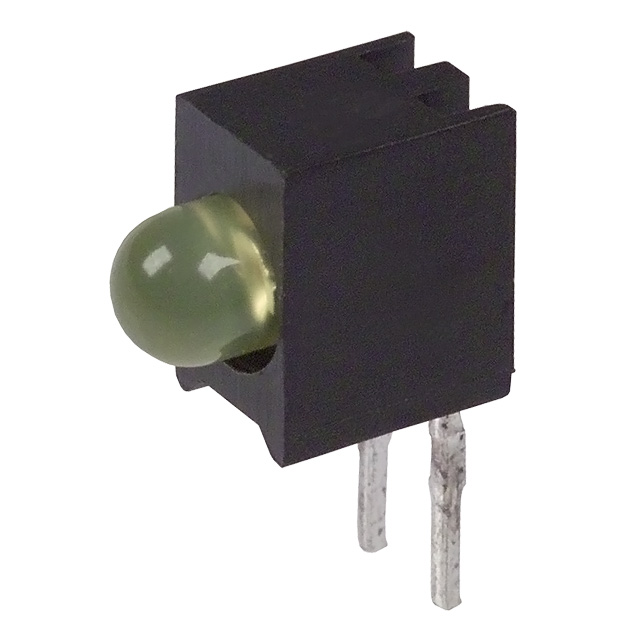

Description: LED YELLOW T1 RIGHT ANGLE PCB

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

5600F7 Parameters

Technical/Catalog Information	5600F7
Vendor	CML Innovative Technologies Inc
Category	Optoelectronics
Color	Yellow
Mounting Type	Through Hole, Right Angle
Configuration	Single
Voltage Rating	2.1V
Current	10mA
Lens Style/Size	Round, 3mm, T-1
Packaging	Bulk
Lens Type	Diffused, Yellow Tinted
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	5600F7 5600F7 L20327 ND L20327ND L20327

5600F7 General Description

CML LED assemblies are available in both right angle and vertical package and utilize the CML IT line of high quality LEDs. Parts range in voltage from 2V to 12V and in current from 2mA to 20mA. The UL94V0 housings ensure proper LED alignment.

5600F7 Maximum Ratings

Part Number: 5600F7
Serial Number: 5600F
Emitted color: Yellow
Lens color: Yellow
Lum in min (mcd): 3.6
Lum in typ (mcd): 10
Rated current (mA): 10.0
Cont forward current max: 30.0
Fwd volts type: 2.1
Forward volt max.: 3.0
Reverse breakdown V: 5
Viewing angle (°): 55
Peak wave length (mA): 585
Housing type: UL94V-0
RoHS Status: Yes

5600F7 Connection Diagram
