53808-0704, 5380H1, 5380H5

Table of contents:
Info of 53808-0704
Info of 5380H1
Info of 5380H5

53808-0704, 5380H1, 5380H5 Selling Leads, Datasheet

MFG:CML Innovative Technologies Inc Category:Optoelectronics Package Cooled:SMD D/C:09+

53808-0704, 5380H1, 5380H5 Datasheet download

Five Points

Part Number: 5380H1

Category: Optoelectronics

MFG: CML Innovative Technologies Inc

Package Cooled: SMD

D/C: 09+

Description: LED GREEN T1-3/4 RIGHT ANG PCB

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

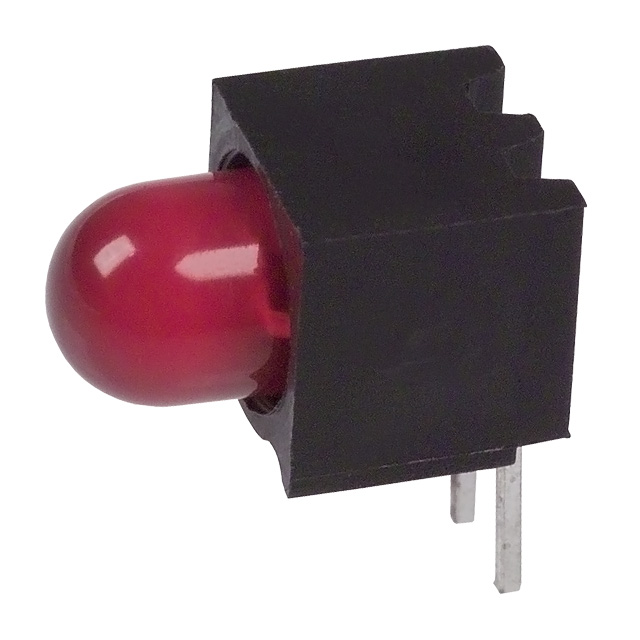

5380H1 Parameters

Technical/Catalog Information	5380H1
Vendor	CML Innovative Technologies Inc
Category	Optoelectronics
Color	Red
Mounting Type	Through Hole, Right Angle
Configuration	Single
Voltage Rating	2.0V
Current	10mA
Lens Style/Size	Round, 5mm, T-1 3/4
Packaging	Bulk
Lens Type	Diffused, Red Tinted
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	5380H1 5380H1 L20311 ND L20311ND L20311

5380H1 General Description

CML LED assemblies are available in both right angle and vertical package and utilize the CML IT line of high quality LEDs. Parts range in voltage from 2V to 12V and in current from 2mA to 20mA. The UL94V0 housings ensure proper LED alignment.

5380H1 Maximum Ratings

Part Number: 5380H1
Serial Number: 5380H
Emitted color: Red
Lens color: Red
Lum in min (mcd): 2.2
Lum in typ (mcd): 6.3
Rated current (mA): 10.0
Cont forward current max: 60.0
Fwd volts type: 2.0
Forward volt max.: 3.0
Reverse breakdown V: 3
Viewing angle (°): 50
Peak wave length (mA): 650
Housing type: UL94V-0
RoHS Status: Yes

5380H1 Connection Diagram

5380H5 Parameters

Technical/Catalog Information	5380H5
Vendor	CML Innovative Technologies Inc
Category	Optoelectronics
Color	Green
Mounting Type	Through Hole, Right Angle
Configuration	Single
Voltage Rating	2.2V
Current	10mA
Lens Style/Size	Round, 5mm, T-1 3/4
Packaging	Bulk
Lens Type	Diffused, Green Tinted
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	5380H5 5380H5 L20315 ND L20315ND L20315

5380H5 General Description

5380H5 Maximum Ratings

Part Number: 5380H5
Serial Number: 5380H
Emitted color: Green
Lens color: Green
Lum in min (mcd): 4
Lum in typ (mcd): 10.0
Rated current (mA): 10.0
Cont forward current max: 60.0
Fwd volts type: 2,1
Forward volt max.: 3
Reverse breakdown V: 3
Viewing angle (°): 50
Peak wave length (mA): 563
Housing type: UL94V-0
RoHS Status: Yes

5380H5 Connection Diagram
