5320A, 5320F1, 5321

Table of contents:
Info of 5320A
Info of 5320F1
Info of 5321

5320A, 5320F1, 5321 Selling Leads, Datasheet

MFG:CML Innovative Technologies Inc Category:Optoelectronics Package Cooled:TSSOP-8 D/C:07+

5320A, 5320F1, 5321 Datasheet download

Five Points

Part Number: 5320F1

Category: Optoelectronics

MFG: CML Innovative Technologies Inc

Package Cooled: TSSOP-8

D/C: 07+

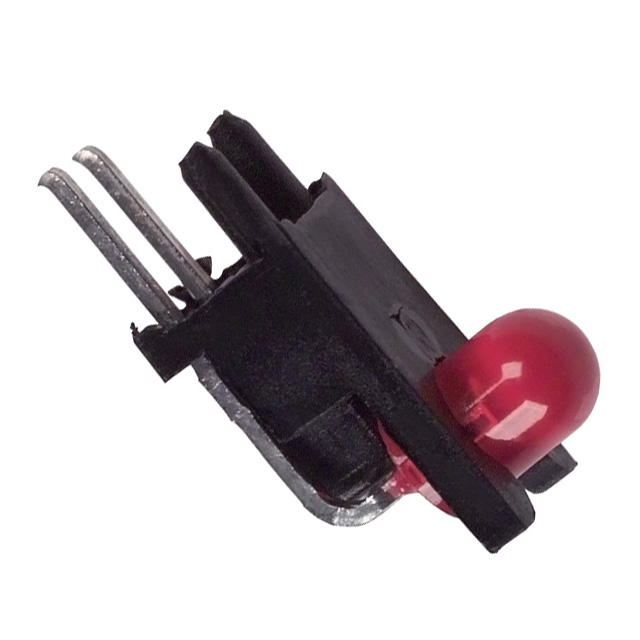

Description: LED RED T1 .35" HI RT ANG ASSY

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

5320F1 Parameters

Technical/Catalog Information	5320F1
Vendor	CML Innovative Technologies Inc
Category	Optoelectronics
Color	Red
Mounting Type	Through Hole, Right Angle
Configuration	Single
Voltage Rating	2.0V
Current	10mA
Lens Style/Size	Round, 3mm, T-1
Packaging	Bulk
Lens Type	Diffused, Red Tinted
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	5320F1 5320F1 L20431 ND L20431ND L20431

5320F1 General Description

CML LED assemblies are available in both right angle and vertical package and utilize the CML IT line of high quality LEDs. Parts range in voltage from 2V to 12V and in current from 2mA to 20mA. The UL94V0 housings ensure proper LED alignment.

5320F1 Maximum Ratings

Part Number: 5320F1
Serial Number: 5320F
Emitted color: Red
Lens color: Red
Lum in min (mcd): 5.6
Lum in typ (mcd): 16
Rated current (mA): 10.0
Cont forward current max: 30.0
Fwd volts type: 2.0
Forward volt max.: 3.0
Reverse breakdown V: 3
Viewing angle (°): 55
Peak wave length (mA): 650
Housing type: -
RoHS Status: Yes

5320F1 Connection Diagram
