MFG:Littelfuse Inc (VA) Category:Circuit Protection Package Cooled:2920 (7351) D/C:09+
2920L100, 2920L125, 2920L125PR Datasheet download
Category: Circuit Protection
MFG: Littelfuse Inc (VA)
Package Cooled: 2920 (7351)
D/C: 09+
Description: PTC RESET 15V 1.25A SMD 2920
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: 2920
File Size: 360246 KB
Manufacturer: ETC [ETC]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: 2920
File Size: 360246 KB
Manufacturer: ETC [ETC]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: 2920
File Size: 360246 KB
Manufacturer: ETC [ETC]
Download : Click here to Download

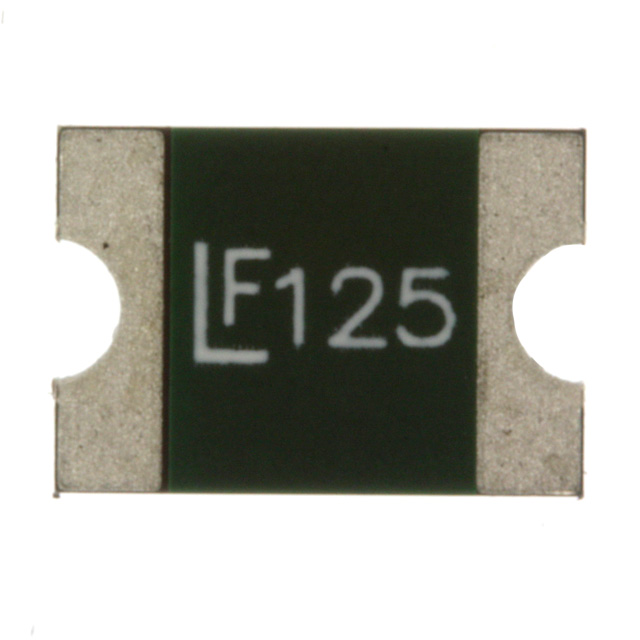

| Technical/Catalog Information | 2920L125PR |
| Vendor | Littelfuse Inc (VA) |
| Category | Circuit Protection |
| Package / Case | 2920 |
| Packaging | Cut Tape (CT) |
| Current - Hold (Ih) (Max) | 1.25A |
| Current - Trip (It) | 2.5A |
| Current - Max | 40A |
| Voltage - Max | 15V |
| Time to Trip | 2s |
| R Min/Max | 0.070 ~ 0.250 Ohm |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | 2920L125PR 2920L125PR F2869CT ND F2869CTND F2869CT |
The 2920L125PR belongs to the 2920L series.It provides surface mount overcurrent protection for medium voltage (60V) applications.It can also be used in applications including IEE1394 port protection, powered ethernet port protection(IEEE802.3af), automotive electronic control module protection and low voltage telecom equipment protection.
The following is about its features.(1) RoHS compliant and lead-free; (2) fast response to fault currents; (3): high voltage; (4) low-profile.
What comes next is the eletrical characters.(1): the Ihold is 1.25 A, Itrip is 2.50 A; (2): Vmax is 15 Vdc and Imax is 40 A; (3): maximum time to trip current is 8.00 A and the time is 2.00 s; (4): typical resistence is 0.160 , the minimum is 0.070 and the maximum is 0.250 ; (5): hold current is 1.89 A at TAMB is -40,1.68 A at TAMB is -20,1.46 A at TAMB is 0,1.25 A at TAMB is 23 and 1.04 A at TAMB is 40.
If you want to know more information about the 2920L125PR,please download the datasheet in www.seekic.com.
