MFG:Keystone Electronics Category:Hardware, Fasteners, Accessories Package Cooled:SOP18W D/C:09+
2433, 24333, 2433309-G3 Datasheet download
Category: Hardware, Fasteners, Accessories
MFG: Keystone Electronics
Package Cooled: SOP18W
D/C: 09+
Description: STANDOFF HEX M2.5 THR 15MM ALUM
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: 24330
File Size: 102960 KB
Manufacturer: CANDD [C&D Technologies]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: 24330
File Size: 102960 KB
Manufacturer: CANDD [C&D Technologies]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: 24330
File Size: 102960 KB
Manufacturer: CANDD [C&D Technologies]
Download : Click here to Download

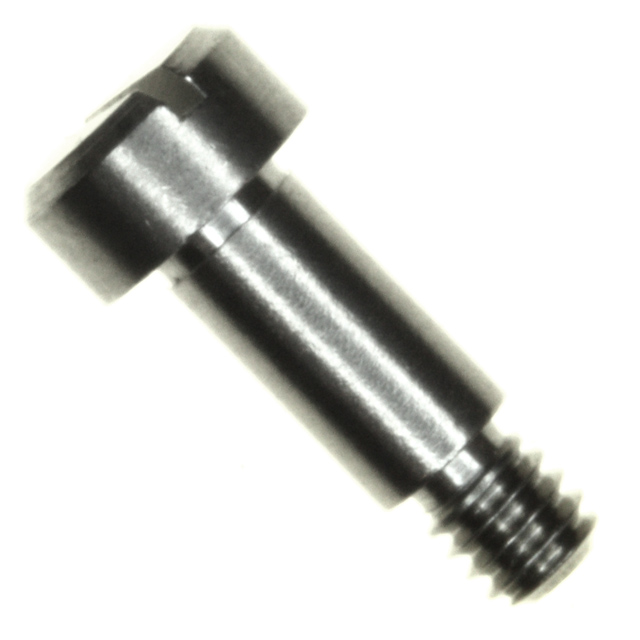

| Technical/Catalog Information | 2433 |
| Vendor | Keystone Electronics |
| Category | Hardware, Fasteners, Accessories |
| Head Height | 0.156" (3.96mm) |
| Length - Below Head | 0.375" (9.53mm) 3/8" |
| Material | Stainless Steel |
| Plating | - |
| Screw Head Type | Knob, Circular - Slotted |
| Thread Size | 8-32 |
| Type | Captive Panel, Shoulder |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | 2433 2433 2433K ND 2433KND 2433K |
The 2433 series(Insert Molded Coil) are tested by the equipment of Q meter (HP 4342A), which is measured in this way: inductance below 0.1uH calculated from readings taken at 50MHz; Inductance greater than 0.1uH read at recommended Q meter frequency; Q and L measured with ?" long of TCW#16 soldered along the coil leads and with one end flush with the bottom of the coil then bent ?" down from stand off at an angle of 90°; L min. measured with core halfway out of the top of the form.
The 2433 series possess features of Plastic molded, High reliability, Low cost. The electrical specification of the 2433 series are got. 2433-01(L Min. (uH):0.047, L Nom. (uH):0.048, L Max. (uH):0.049, Q Min. @ L Nom.: 90 @ 50 MHz, Color: Brown), 2433-02(L Min. (uH):0.068, L Nom. (uH):0.078, L Max. (uH):0.085, Q Min. @ L Nom.: 100 @ 50 MHz, Color: Red), 2433-03(L Min. (uH):0.090, L Nom. (uH):0.108, L Max. (uH):0.126, Q Min. @ L Nom.: 100 @ 50 MHz, Color: Orange), 2433-04(L Min. (uH):0.117, L Nom. (uH):0.146, L Max. (uH):0.175, Q Min. @ L Nom.: 94 @ 50 MHz, Color: yellow), 2433-05(L Min. (uH):0.148, L Nom. (uH):0.190, L Max. (uH):0.232, Q Min. @ L Nom.: 88 @ 50 MHz, Color: green), 2433-10(L Min. (uH):0.390, L Nom. (uH):0.465, L Max. (uH):0.540, Q Min. @ L Nom.: 60 @ 40 MHz, Color: Black).
At present there is not too much information about this model.If you are willing to find more about 2433 series, please pay attention to our web! We will promptly update the relevant information.
| Technical/Catalog Information | 24333 |
| Vendor | Keystone Electronics |
| Category | Hardware, Fasteners, Accessories |
| Between Board Height | 0.591" (15.0mm) |
| Color | Natural |
| Length - Overall | 0.748" (19.0mm) |
| Material | Aluminum |
| Plating | Iridite |
| Size | 0.178" (4.5mm) Hex |
| Thread/Screw/Hole Size | M2.5 Thread |
| Type | Hex Threaded, Male/Female |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | 24333 24333 24333K ND 24333KND 24333K |
