18602351, 1860235W3, 1860235W3D

Table of contents:
Info of 18602351
Info of 1860235W3
Info of 1860235W3D

18602351, 1860235W3, 1860235W3D Selling Leads, Datasheet

MFG:CML Innovative Technologies Inc Category:Optoelectronics Package Cooled:NEW AND ORIGINAL D/C:08+/09+

18602351, 1860235W3, 1860235W3D Datasheet download

Five Points

Part Number: 18602351

Category: Optoelectronics

MFG: CML Innovative Technologies Inc

Package Cooled: NEW AND ORIGINAL

D/C: 08+/09+

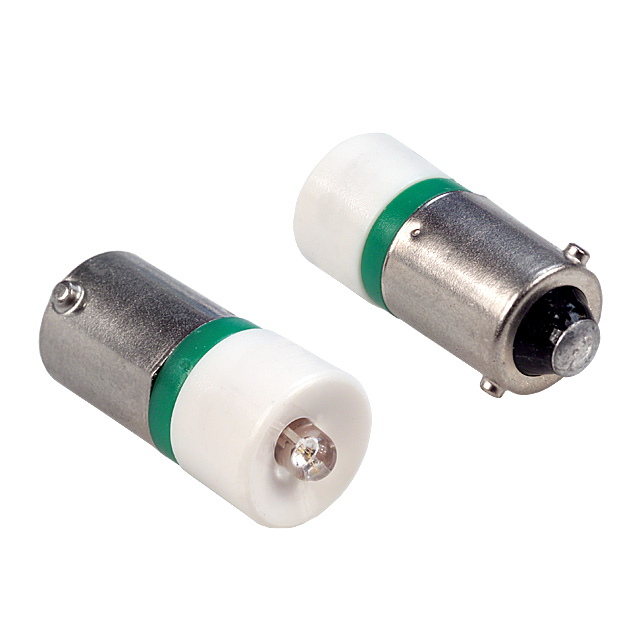

Description: LED BAYONET T3-1/4 24V WHT DIF

Price Break

1
25
100
250
500
1000
5000

Unit Price

12.27000
9.94040
7.19100
6.34500
6.09120
5.28750
5.07600

Extended Price

12.27
248.51
719.10
1586.25
3045.60
5287.50
25380.00

(All prices are in USD) Prices for reference only

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

18602351 Parameters

Technical/Catalog Information	18602351
Vendor	CML Innovative Technologies Inc
Category	Optoelectronics
Color	Green
Wavelength	525nm
Size / Dimension	T - 3 1/4
Millicandela Rating	1000mcd
Configuration	Single
Voltage - Forward (Vf) Typ	24V
Applications	Incandescent Replacements, Indicator Lights
Can Replace Lamps	24MB, 1437, 1818
Base Type	Bayonet
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	18602351 18602351 L1080 ND L1080ND L1080

18602351 Maximum Ratings

Part Number: 18602351
Serial Number: 18602
Based LED type: StarLED
Size (inch): T-3 1/4
Size (mm): T10
Housing Size: 10x25mm
Base: BA9s
Chip number: 1
Chip color: green
Wavelength (mA): 525
Op. voltage (V): 24
Rectifier: Bridge
AC current: 15
DC current: 15
Type lv DC current: 2250
Voltage tolerance (%): 10%
Op. temperature (°C): -20 C - +60 C
Storage temperature (°C): -25C - +80C
RoHS Status: Yes

18602351 Connection Diagram

1860235W3 Parameters

Technical/Catalog Information	1860235W3
Vendor	CML Innovative Technologies Inc
Category	Optoelectronics
Color	White Clear
Wavelength	-
Size / Dimension	T - 3 1/4
Millicandela Rating	750mcd
Configuration	Single
Voltage - Forward (Vf) Typ	24V
Applications	Incandescent Replacements, Indicator Lights
Can Replace Lamps	24MB, 1437, 1818
Base Type	Bayonet
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	1860235W3 1860235W3 L1083 ND L1083ND L1083

1860235W3 Maximum Ratings

Part Number: 1860235W3
Serial Number: 18602
Based LED type: StarLED
Size (inch): T-3 1/4
Size (mm): T10
Housing Size: 10x25mm
Base: BA9s
Chip number: 1
Chip color: white clear
Wavelength (mA): 0.31/0.32
Op. voltage (V): 24
Rectifier: Bridge
AC current: 15
DC current: 15
Type lv DC current: 1500
Voltage tolerance (%): 10%
Op. temperature (°C): -20 C - +60 C
Storage temperature (°C): -25C - +80C
RoHS Status: Yes

1860235W3 Connection Diagram

1860235W3D Parameters

Technical/Catalog Information	1860235W3D
Vendor	CML Innovative Technologies Inc
Category	Optoelectronics
Color	White Diffused
Wavelength	-
Size / Dimension	T - 3 1/4
Millicandela Rating	375mcd
Configuration	Single
Voltage - Forward (Vf) Typ	24V
Applications	Incandescent Replacements, Indicator Lights
Can Replace Lamps	24MB, 1437, 1818
Base Type	Bayonet
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	1860235W3D 1860235W3D L1084 ND L1084ND L1084

1860235W3D Maximum Ratings

Part Number: 1860235W3D
Serial Number: 18602
Based LED type: StarLED
Size (inch): T-3 1/4
Size (mm): T10
Housing Size: 10x25mm
Base: BA9s
Chip number: 1
Chip color: white diffused
Wavelength (mA): 0.31/0.33
Op. voltage (V): 24
Rectifier: Bridge
AC current: 15
DC current: 15
Type lv DC current: 750
Voltage tolerance (%): 10%
Op. temperature (°C): -20 C - +60 C
Storage temperature (°C): -25C - +80C
RoHS Status: Yes

1860235W3D Connection Diagram
