Product Details

Description



Features:

• First LVD only Active Terminator
• Meets SCSI SPI-2 Ultra2 (Fast-40)
  and Ultra3 / Ultra160 (Fast-80) Standards
• 2.7V to 5.25V Operation
• Differential Failsafe Bias


Pinout

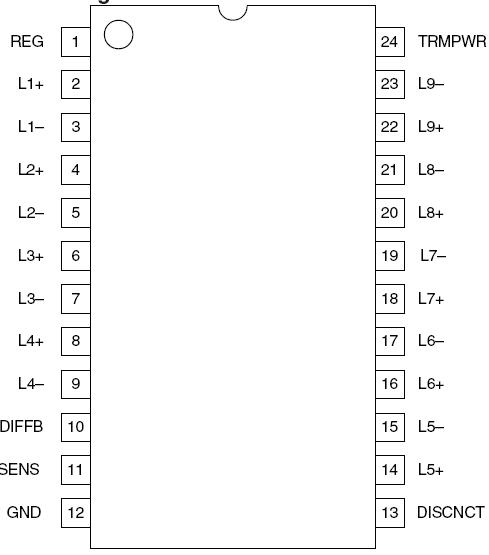

Connection Diagram


Specifications

TERMPWR Voltage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  , +6V
Signal Line Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . 0V to 3.6V
Package Dissipation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1W
Storage Temperature . . . . . . . . . . . . . . . . . . . 65°C to +150°C
Junction Temperature. . . . . . . . . . . . . . . . . . . 55°C to +150°C
Lead Temperature (Soldering, 10 sec.) . . . . . . . . . . . . . +300°C


Description

The UCC5640 is an active terminator for Low Voltage Differential (LVD) SCSI networks. This LVD only design allows the user to reach peak bus performance while reducing system cost. The device is designed as an active Y-terminator to improve the frequency response of the LVD Bus. Designed with a 1.5pF channel capacitance, the UCC5640 allows for minimal bus loading for a maximum number of peripherals. With the UCC5640, the designer will be able to comply with the Fast-40 SPI-2 and Fast-80 SPI-3 specifications. The UCC5640 also provides a much-needed system migration path for ever improving SCSI system standards. This device is available in the 24 pin TSSOP and 28 pin TSSOP for ease of layout use.

The UCC5640 is not designed for use in single ended or high voltage differential systems.
