UCC5342

Features: · Supports IrDA Standard to 115kbps Data Rates· 3V to 5V Operation· Wide Dynamic Receiver Range from 200nA to 50mA Typical· IrDA Compliant I/O· 500mA LED Driver· Very Low Quiescent Current in Active Mode (250mA Typical)· Ultra Low Quiescent Current in Sleep Mode (0.5mA Typical)· Compatib...

product image

UCC5342 Picture
See larger image
SeekIC No. : 004536139 Detail

UCC5342: Features: · Supports IrDA Standard to 115kbps Data Rates· 3V to 5V Operation· Wide Dynamic Receiver Range from 200nA to 50mA Typical· IrDA Compliant I/O· 500mA LED Driver· Very Low Quiescent Current...

UCC5342 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
UCC5342
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/30

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Supports IrDA Standard to 115kbps Data Rates
· 3V to 5V Operation
· Wide Dynamic Receiver Range from
  200nA to 50mA Typical
· IrDA Compliant I/O
· 500mA LED Driver
· Very Low Quiescent Current in Active
  Mode (250mA Typical)
· Ultra Low Quiescent Current in Sleep
  Mode (0.5mA Typical)
· Compatible with IrDA Detector Diodes

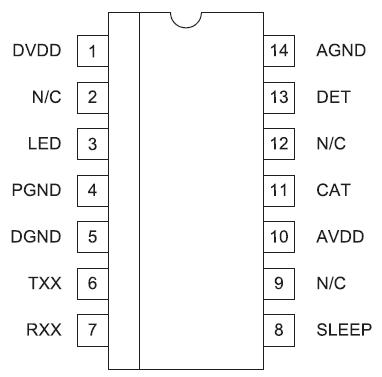

Pinout

Connection Diagram


Specifications

AVDD, DVDD, CAT. . . . . . . . . . . . . . . . . . . . . . . . . . .0.3V to 7V
SLEEP, DET, TXX, LED,
DVDD, CAT. . . . . . . . . . . . . . . . . . . . . . . .-0.3V to AVDD + 0.3V
IRXX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  10mA to 10 mA
IDET . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 250mA
ILED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1A
Storage Temperature . . . . . . . . . . . . . . . . . . .65°C to +150°C
Junction Temperature. . . . . . . . . . . . . . . . . . . 55°C to +150°C
Lead Temperature (Soldering, 10sec.) . . . . . . . . . . . . . +300°C


Description

The UCC5342 IrDA (Infrared Data Association) Transceiver supports the analog section of the IrDA standard. The receiver has a limiting transresistance amplifier to detect a current signal from a PIN diode and drives RXX pulses to a UART. The amplifier is capable of input currents ranging from 200nA to 50mA. The amplifier is bandpass limited to reduce interference from other IR sources.

The output of the receiver is designed to drive CMOS and TTL levels, for direct interfacing to IrDA compliant UARTs and Super I/O devices. Internal resistors are provided for decoupling the detector diode supply, thus minimizing the number of external components required.

The transmitter portion of the chip has a low impedance open drain MOSFET output. It is capable of sinking 300mA from an output LED at 3V, and 500mA at 5V.
