UCC561

The UCC561 LVD Regulator set is designed to provide the correct references voltages and bias currents for LVD termination resistor networks (475 , 121 and 475 ). The device also provides a 1.3V output for Diff Sense signaling. With the proper resistor network, the UCC561 solution will meet the common mode bias impedance, differential bias, and termination impedance requirements of SPI-2 (Ultra2) and SPI-3 (Ultra3).

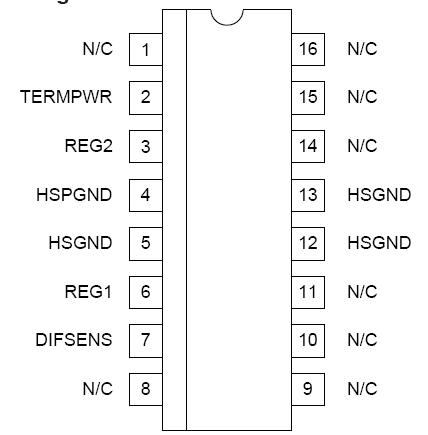

This device incorporates into a single monolith, two sink/source reference voltage regulators, a 1.3V buffered output and protection features. The protection features include thermal shut down and active current limiting circuitry. The UCC561 is offered in 16-pin SOIC(DP) package.
