Product Details

Description



Features:

` TMS470R1x 16/32-Bit RISC Core ` 255 Programmable Baud Rates
  (ARM7TDMI™) Two Serial Communications Interfaces
28-MHz System Clock (48-MHz Pipeline (SCIs)
  Mode) ` 224 Selectable Baud Rates
Independent 16/32-Bit Instruction Set ` Asynchronous/Isosynchronous Modes
Open Architecture With Third-Party Support Standard CAN Controller (SCC)
Built-In Debug Module ` 16-Mailbox Capacity
Big-Endian Format Utilized ` Fully Compliant with CAN Protocol,
` Integrated Memory Version 2.0B
128K-Byte Program Flash Class II Serial Interface (C2SIa)
` One Bank With Ten Contiguous Sectors ` Two Selectable Data Rates
` Internal State Machine for Programming ` Normal Mode 10.4 Kbps and 4X Mode
  and Erase 41.6 Kbps
8K-Byte Static RAM (SRAM) ` High-End Timer (HET)
` Operating Features 16 Programmable I/O Channels:
Core Supply Voltage (VCC): 1.81 V2.05 V ` 14 High-Resolution Pins
I/O Supply Voltage (VCCIO): 3.0 V3.6 V ` 2 Standard-Resolution Pins
Low-Power Modes: STANDBY and HALT High-Resolution Share Feature (XOR)
Extended Industrial Temperature Ranges HET RAM (64-Instruction Capacity)
` 470+ System Module ` 10-Bit Multi-Buffered ADC (MibADC)
32-Bit Address Space Decoding 16-Channel
Bus Supervision for Memory and 64-Word FIFO Buffer
  Peripherals Single- or Continuous-Conversion Modes
Analog Watchdog (AWD) Timer 1.55 s Minimum Sample and Conversion
Real-Time Interrupt (RTI) Time
System Integrity and Failure Detection Calibration Mode and Self-Test Features
` Zero-Pin Phase-Locked Loop (ZPLL)-Based ` 8 External Interrupts
  Clock Module With Prescaler ` Flexible Interrupt Handling
Multiply-by-4 or -8 Internal ZPLL Option ` 11 Dedicated GIO Pins, 1 Input-Only GIO Pin,
ZPLL Bypass Mode and 38 Additional Peripheral I/Os
` External Clock Prescale (ECP) Module
Programmable Low-Frequency External Clock (CLK)
` On-Chip Scan-Base Emulation Logic, IEEE
  Standard 1149.1 (1) (JTAG) Boundary-Scan Logic
` 100-Pin Plastic Low-Profile Quad Flatpack (PZ Suffix)



Pinout

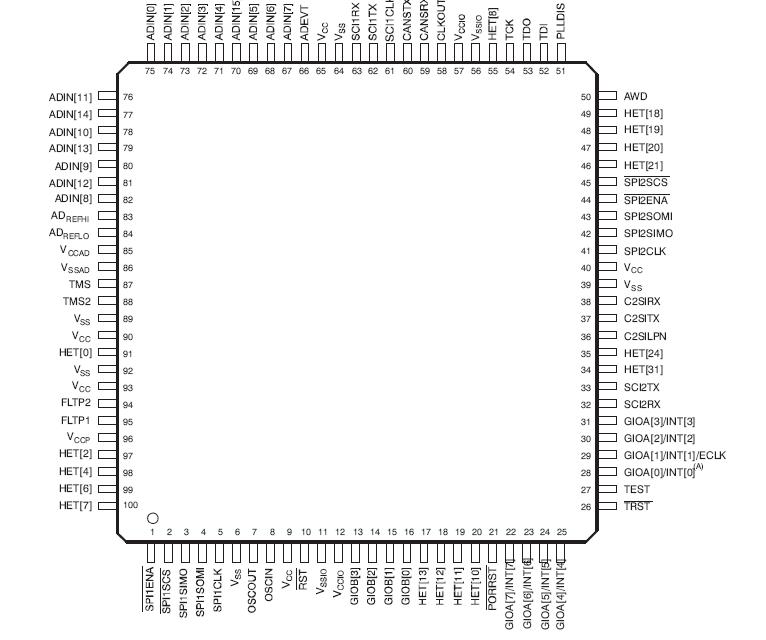

  Connection Diagram


Specifications

over operating free-air temperature range(1)
Supply voltage range: VCC (2) .......................................................................-0.5 V to 2.5 V
Supply voltage range: VCCIO, VCCAD, VCCP (Flash pump) (2) ......................-0.5 V to 4.1 V
Input voltage range: All input pins................................................................ -0.5 V to 4.1 V
Input clamp current: IIK (VI < 0 or VI> VCCIO)
  All pins except ADIN[0:11], PORRST,
  TRST, TEST and TCK ±20 mA
  IIK (VI < 0 or VI> VCCAD)
ADIN[0:11] ................................................................................................................±10 mA
Operating free-air temperature range, TA:................................... T version -40°C to 105°C
Q version...................................................................................................... -40°C to 125°C
Operating junction temperature range, TJ.................................................... -40°C to 150°C
Storage temperature range, Tstg................................................................. -65°C to 150°C
(1) Stresses beyond those listed under absolute maximum ratings may cause permanent damage to the device. These are stress ratings
only, and functional operation of the devices at these or any other conditions beyond those indicated under recommended operating
conditions is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
(2) All voltage values are with respect to their associated grounds.



Description

The TMS470R1A128(2) devices are members of the Texas Instruments (TI) TMS470R1x family of general-purpose16/32-bit reduced instruction set computer (RISC) microcontrollers. The TMS470R1x microcontroller offers high performance utilizing the high-speed ARM7TDMI 16/32-bit RISC central processing unit (CPU), resulting in a high instruction throughput while maintaining greater code efficiency. The ARM7TDMI 16/32-bit RISC CPU views memory as a linear collection of bytes numbered upwards from zero. The A128 utilizes the big-endian format, where the most significant byte of a word is stored at the lowest numbered byte and the least significant byte at the highest numbered byte.

High-end embedded control applications demand more performance from their controllers while maintaining low costs. The A128 RISC core architecture offers solutions to these performance and cost demands while maintaining low power consumption.

The A128 devices contain the following:
· ARM7TDMI 16/32-Bit RISC CPU
· TMS470R1x system module (SYS) with 470+ enhancements
· 128K-byte flash
· 8K-byte SRAM
· Zero-pin phase-locked loop (ZPLL) clock module
· Analog watchdog (AWD) timer
· Real-time interrupt (RTI) module
· Two serial peripheral interface (SPI) modules
· Two serial communications interface (SCI) modules
· Standard CAN controller (SCC)
· Class II serial interface (C2SIa)
· 10-bit, 16-input channel multi-buffered analog-to-digital converter (MibADC)
· High-end timer (HET) controlling 16 I/Os
· External Clock Prescale (ECP)
· Up to 49 I/O pins and 1 input-only pin

The functions performed by the 470+ system module (SYS) include:
· Address decoding
· Memory protection
· Memory and peripherals bus supervision
· Reset and abort exception management
· Prioritization for all internal interrupt sources
· Device clock control
· Parallel signature analysis (PSA)

This data sheet includes device-specific information such as memory and peripheral select assignment, interrupt priority, and a device memory map. For a more detailed functional description of the SYS module, see the TMS470R1x System Module Reference Guide (literature number SPNU189).

The A128 memory includes general-purpose SRAM supporting single-cycle read/write accesses in byte, halfword, and word modes.

The flash memory on the A128 devices is a nonvolatile, electrically erasable and programmable memory implemented with a 32-bit-wide data bus interface.The flash operates with a system clock frequency of up to 28 MHz. In pipeline mode, the flash operates with a system clock frequency of up to 48 MHz. For more detailed information on the flash, see the F05 flash section of this data sheet and the TMS470R1x F05 Flash Reference Guide (literature number SPNU213).
