Product Details

Description

Pinout

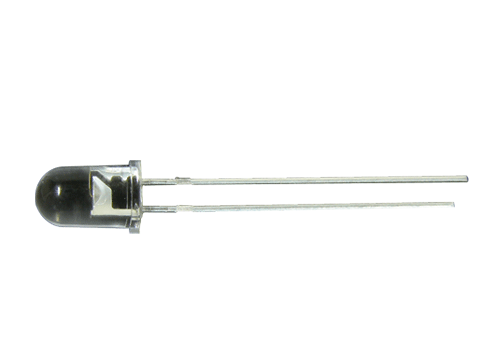

Connection Diagram

Specifications

Characteristic	Symbol	Ratings	Unit
Power Dissipation	P_D	85	mW
Forward Current	I_F	30	mA
*¹Peak Forward Current	I_FP	50	mA
Reverse Voltage	V_R	4	V
Operating Temperature	T_opr	-25∼85
Storage Temperature	T_stg	-30∼100
*²Soldering Temperature	T_sol	260 for 5 seconds

*1.Duty ratio = 1/16, Pulse width = 0.1ms
*2.Keep the distance more than 2.0mm from PCB to the bottom of LED package

Description

SA5511(B) has been used ,as a lense package, for a sign board and many electric appliances. * High brightness for the colorful sign boards * Low power consumption lamps can save more energy * Lensed package allow user to make more eradiating power
