NTE891SM

Features:

 Wide Dynamic Range
Low Input Noise Voltage
High Slew Rate
High Gain Bandwidth Product
Wide Power Bandwidth
Low Distortion
Low Offset Voltage
Large Phase Margin
Available in 8Lead Mini DIP (NTE891M) and Surface Mount SOIC8 (NTE891SM)

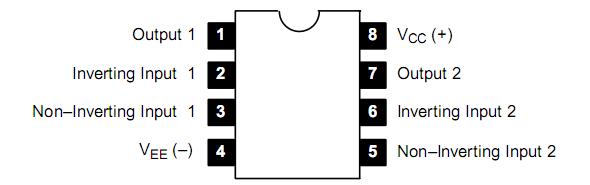

Pinout




Specifications

Supply Voltage, V_CC V_EE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36V
Differential Input Voltage (Note 1), V_ID  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . . . . . . ±30V
Input Voltage Range (Note 1), V_IC  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±15V
Power Dissipation (Note 2), P_D . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 500mW
Operating Temperature Range, T_opr  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . 40° to +85
Storage Temperature Range, T_stg  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . 60° to +150
Lead Soldering Temperature (10 seconds), T_L  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .+260


Description

The NTE891M and NTE891SM are dual general purpose operational amplifiers designed with partic-ular emphasis on performance in audio systems.  These NTE891SM deliver low noise, high speed and wide bandwidth without increasing external components for all closed loop gains and is therefore opti-mized for all preamp and high level stages in PCM and HiFi systems.
