NTE801

Features: ` Requires No Inductors` Low External Part Count` Only Oscillator Frequency Adjustment Necessary` Integral Stereo/Monaural Switch 75mA Lamp Driving Capability` Wide Dynamic Range: 0.5 to 2.8V(pp) Composite Input Signal` Wide Supply Range: 8V to 14V` Excellent Channel Separation Maintaine...

product image

NTE801 Picture
See larger image
SeekIC No. : 004436480 Detail

NTE801: Features: ` Requires No Inductors` Low External Part Count` Only Oscillator Frequency Adjustment Necessary` Integral Stereo/Monaural Switch 75mA Lamp Driving Capability` Wide Dynamic Range: 0.5 to 2...

NTE801 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NTE801
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/3/10

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Requires No Inductors
` Low External Part Count
` Only Oscillator Frequency Adjustment Necessary
` Integral Stereo/Monaural Switch 75mA Lamp Driving Capability
` Wide Dynamic Range: 0.5 to 2.8V(pp) Composite Input Signal
` Wide Supply Range: 8V to 14V
` Excellent Channel Separation Maintained Over Entire Audio Frequency Range
` Low Distortion: Typically 0.3% THD at 560mV (RMS) Composite Input Signal
` Excellent SCA Rejection


Pinout

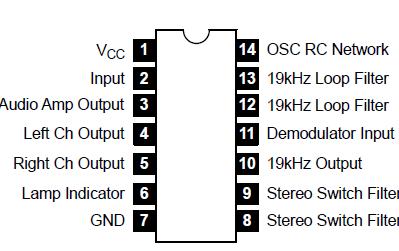

Connection Diagram


Specifications

Power Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14V
Lamp Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75mA
Power Dissipation (Package Limitation) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .625mW
Derate Above TA = +25 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5.0mW/
Operating Temperature Range, TA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40° to +85
Storage Temperature Range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65° to +150


Description

The NTE801 is a monolithic device in a 14Lead DIP type package designed for use in solidstate stereo receivers.
