MCM6264C

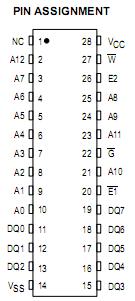

Pinout




Specifications

Input Timing Measurement Reference Level . . . . . . . . . . . . . . . 1.5 V
Input Pulse Levels  . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . 0 to 3.0 V
Input Rise/Fall Time  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 ns
Output Timing Measurement Reference Level  . . . . . . . . . . . . . 1.5 V
Output Load  . . . . . . . . . . . . See Figure 1A Unless Otherwise Noted


Description

The MCM6264C is fabricated using Motorola's highperformance silicongate CMOS technology. Static design eliminates the need for external clocks or timing strobes, while CMOS circuitry reduces power consumption and provides fo greater reliability.
This device meets JEDEC standards for functionality and pinout, and is avail able in plastic dualinline and plastic smalloutline Jleaded packages.

  • Single 5 V ± 10% Power Supply
  • Fully Static - No Clock or Timing Strobes Necessary
  • Fast Access Times: 12, 15, 20, 25, and 35 ns
  • Equal Address and Chip Enable Access Times
  • Output Enable (G) Feature for Increased System Flexibility and to
     Eliminate Bus Contention Problems
