MB89P215

Features: • F2MC-8L CPU core• Maximum memory spaces : 64 Kbytes• Minimum instruction execution time : 0.32 µs to 5.12 µs (at 12.5 MHz) • Interrupt processing time : 2.88 µs to 46.08 µs (at 12.5 MHz) • I/O port : Max 22• 21-bit time base t...

product image

MB89P215 Picture
See larger image
SeekIC No. : 004413752 Detail

MB89P215: Features: • F2MC-8L CPU core• Maximum memory spaces : 64 Kbytes• Minimum instruction execution time : 0.32 µs to 5.12 µs (at 12.5 MHz) • Interrupt processing time...

MB89P215 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MB89P215
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• F2MC-8L CPU core
• Maximum memory spaces : 64 Kbytes
• Minimum instruction execution time : 0.32 µs to 5.12 µs (at 12.5 MHz)
• Interrupt processing time : 2.88 µs to 46.08 µs (at 12.5 MHz)
• I/O port : Max 22
• 21-bit time base timer
• 8-bit PWM timer
• 8-/16-bit capture timer/counter : 2 ch
• Watchdog timer
• 12-bit PPG timer
• 10-bit A/D converter : 8 ch
• LIN-UART
• 8-bit serial I/O
• External Interrupt : 3 ch
• External or CR (built-in) oscillation clock, switchable
• Low power consumption modes (stop modes, sleep modes)
• Package : SSOP-30,MQFP-48
• CMOS technology


Pinout

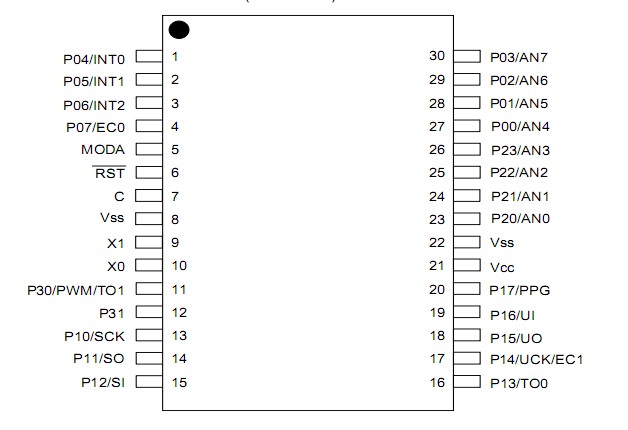

Connection Diagram


Specifications

Parameter Symbol Rating Unit Remarks
Min Max
Power supply voltage VCC VSS − 0.3 VSS + 6.0 V
Input voltage VI VSS − 0.3 VCC + 0.3 V
Output voltage VO VSS − 0.3 VSS + 6.0 V
Maximum clamp current ICLAMP − 0.4 + 0.4 mA
Maximum clamp total current |ICLAMP| − 10 mA
"L" level output current IOL − 10 mA
"L" level average current IOLAV − 4 mA Average value
(operating current * operating duty)
"L" level total output current IOL − 50 mA
"H" level output current IOH − − 10 mA
"H" level average current IOHAV − − 4 mA Average value
(operating current * operating duty)
"H" level total output current IOH − − 50 mA
Power consumption Pd − 200 mW
Storage temperature Tstg − 55 + 150 °C



Description

The MB89P215 series is a one-chip microcontroller that features a compact instruction set and contains a range of peripheral functions including timers, a serial interface, A/D converters and external interrupts.
