Features:

•F2MC-8L family CPU core
•Low-voltage operation (when an A/D converter is not used)
•Low current consumption (applicable to the dual-clock system)
•Minimum execution time : 0.95 ms at 4.2 MHz
•21-bit timebase timer
•I/O ports : max. 36 ports
•External interrupt 1 : 3 channels
•External interrupt 2 (wake-up function) : 8 channels (only for the MB89130A series)
•8-bit serial I/O : 1 channel




Pinout

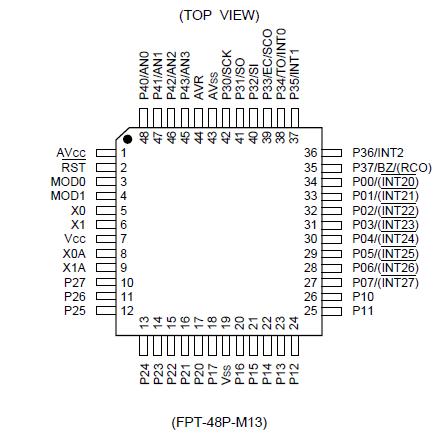

Connection Diagram


Specifications

Parameter Symbol Value Unit Remarks
Min. Max.
Power supply voltage VCC
AVCC		 VSS - 0.3 VSS + 7.2 V *
AVR VSS - 0.3 VSS + 7.2 V AVR must not exceed VCC + 0.3 V
Program voltage VPP VSS - 0.6 VSS + 13.0 V Only for the MB89P131/P133A/
P135A
Input voltage VI VSS - 0.3 VCC + 0.3 V
Output voltage VO VSS - 0.3 VCC + 0.3 V
"L" level maximum output current IOL _ 10 mA
"L" level average output current IOLAV _ 4 mA Average value (operating current ´
operating rate)
"L" level total maximum output current IOL _ 100 mA
"L" level total average output current IOLAV _ 20 mA Average value (operating current ´
operating rate)
"H" level maximum output current IOH _ 10 mA
"H" level average output current IOHAV _ 2 mA Average value (operating current ´
operating rate)
"H" level total maximum output current IOH _ 30 mA
"H" level total average output current IOHAV _ 10 mA Average value (operating current ´
operating rate)
Power consumption PD _ 200 mW
Operating temperature TA -40 +85 °C
Storage temperature Tstg -55 +150 °C



Description

The MB89130/130A series has been developed as a general-purpose version of the F2MC*-8L family consisting of proprietary 8-bit, single-chip microcontrollers.

In addition to a compact instruction set, the microcontrollers contain a great variety of peripheral functions such as timers, a serial interface, an A/D converter, and external interrupts. The MB89130A series also include a remote control transmitting output and wake-up interrupt function.
